Flipt v2.0.0 is now stable and ready for production use!If you find any issues with the documentation, please open an issue.
More information on how to use Flipt is noted in the Quickstart documentation.

​
Environments

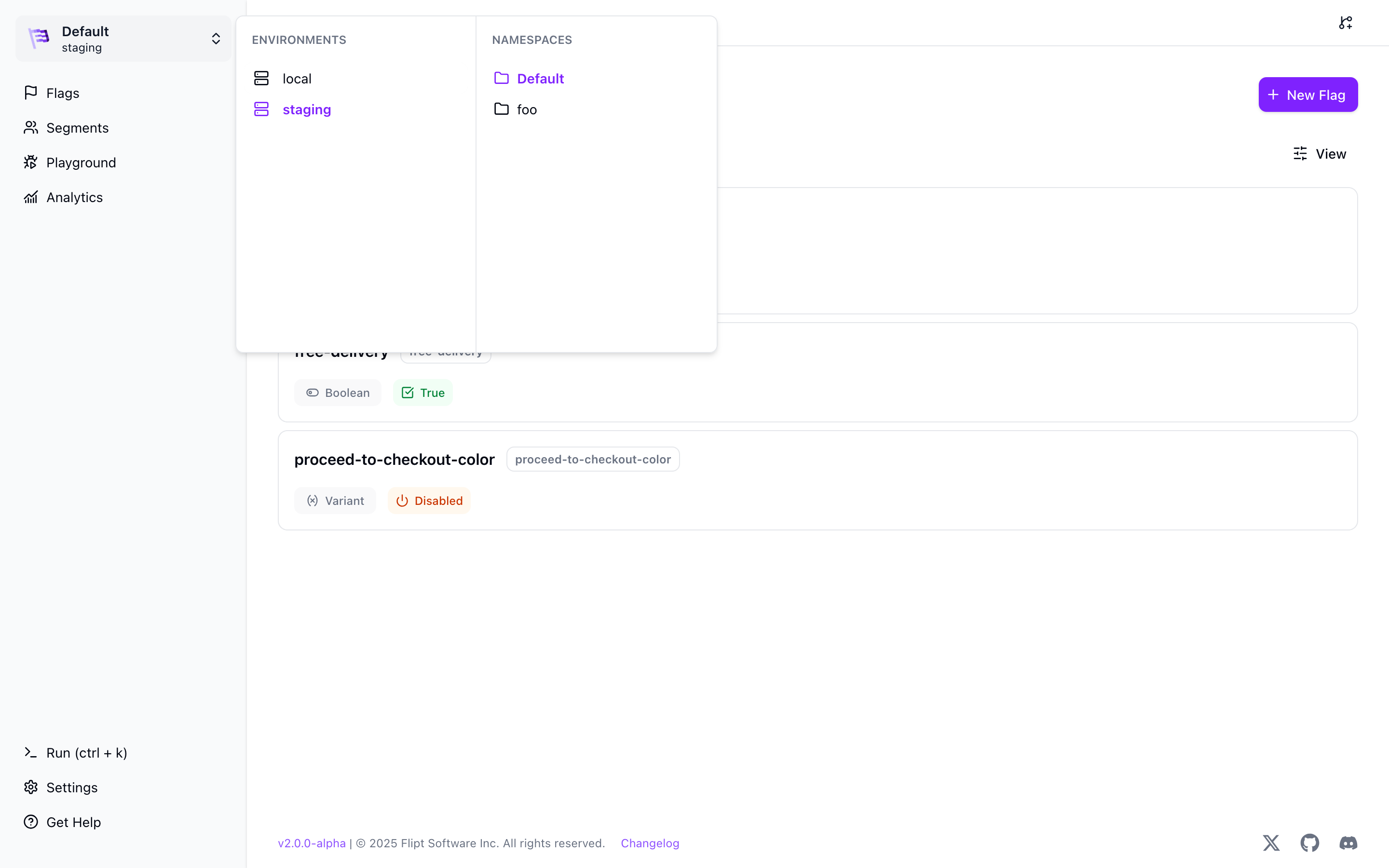

Environments are a new concept in Flipt v2. They are a way to organize your namespaces, feature flags and configurations and keep them separate from each other. By default, Flipt v2 will create a single environment called default along with the default namespace. Environments Environments are managed via configuration files as they are also coupled to how you store your configuration data. See the Environments documentation for more.
All data created in one environment is only accessible within that environment, meaning namespaces, flags, segments, etc must be created in each environment in which they’re to be used.If an environment isn’t selected then the ‘Default’ environment is used.
You can create as many environments as you want. Each environment can have its own namespaces, feature flags and configurations.

​
Branches

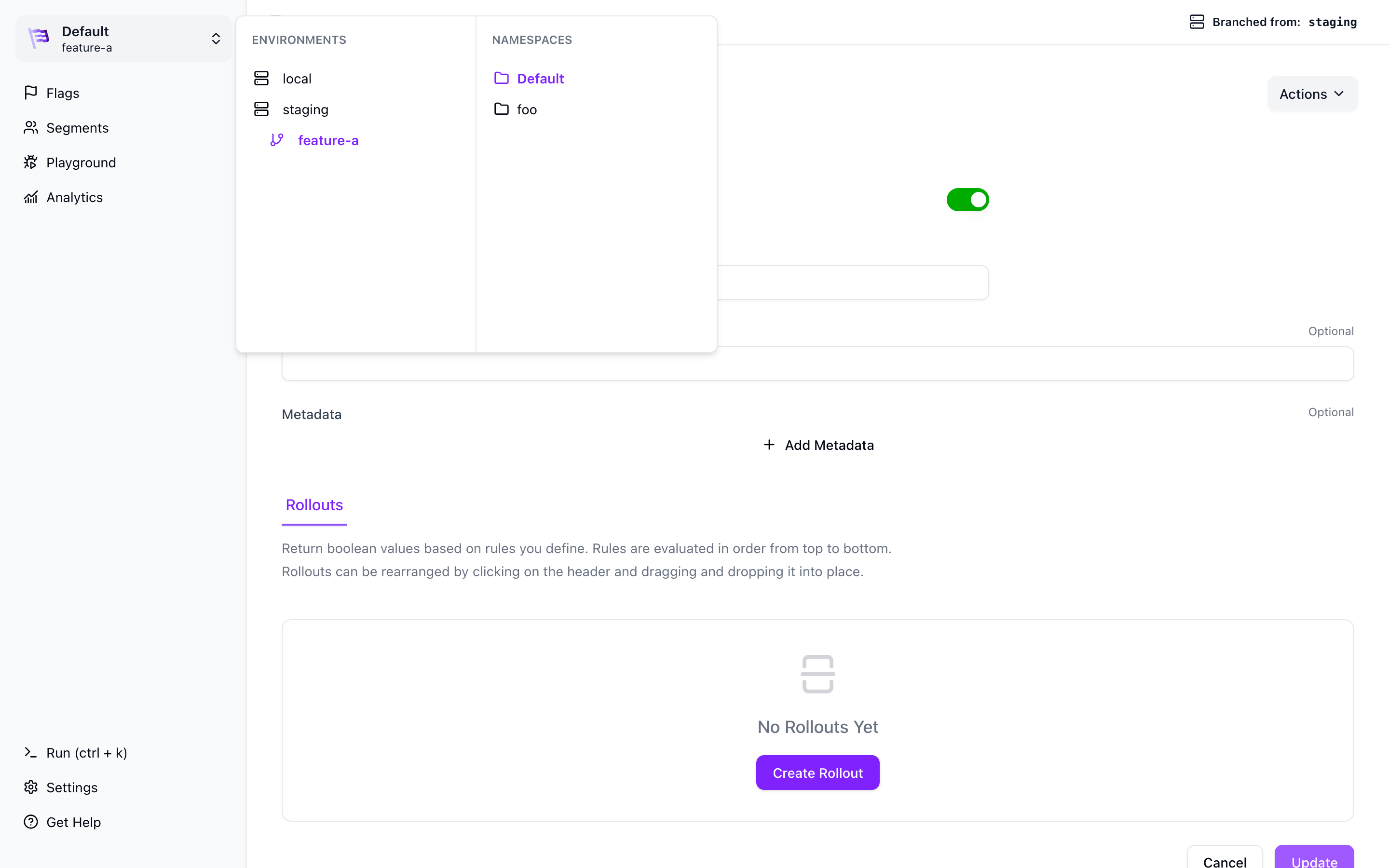

Branches are a way to create a copy of an environment. This allows you to test changes to your feature flags and configurations in a separate branch without affecting your users in production. Branches are created from an existing environment. Branches copy the base environment data and are completely independent of each other after creation. Branches
You can create as many branches as you want from a base environment, however you cannot branch from a branch.

​
Namespaces

Namespaces are a way to organize your feature flags and configurations within an environment. One common use-case of Namespaces is to separate Flipt data by internal team.
All data created in one namespace is only accessible within that namespace, meaning flags, segments, etc must be created in each namespace in which they’re to be used.If a namespace isn’t selected then the ‘Default’ namespace is used.

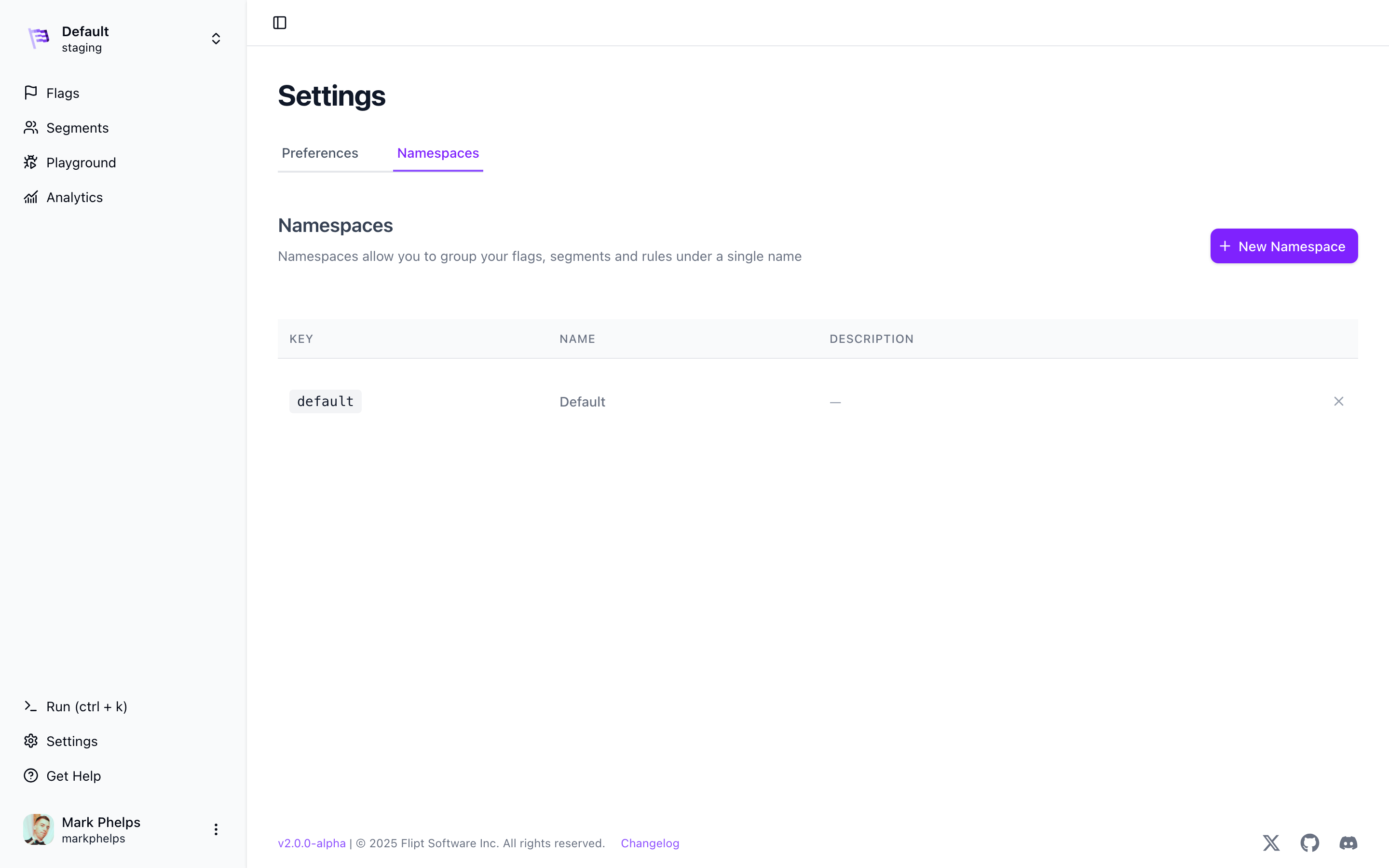

Namespaces can be managed within the Settings section of the Flipt UI: Namespaces

​
Flags

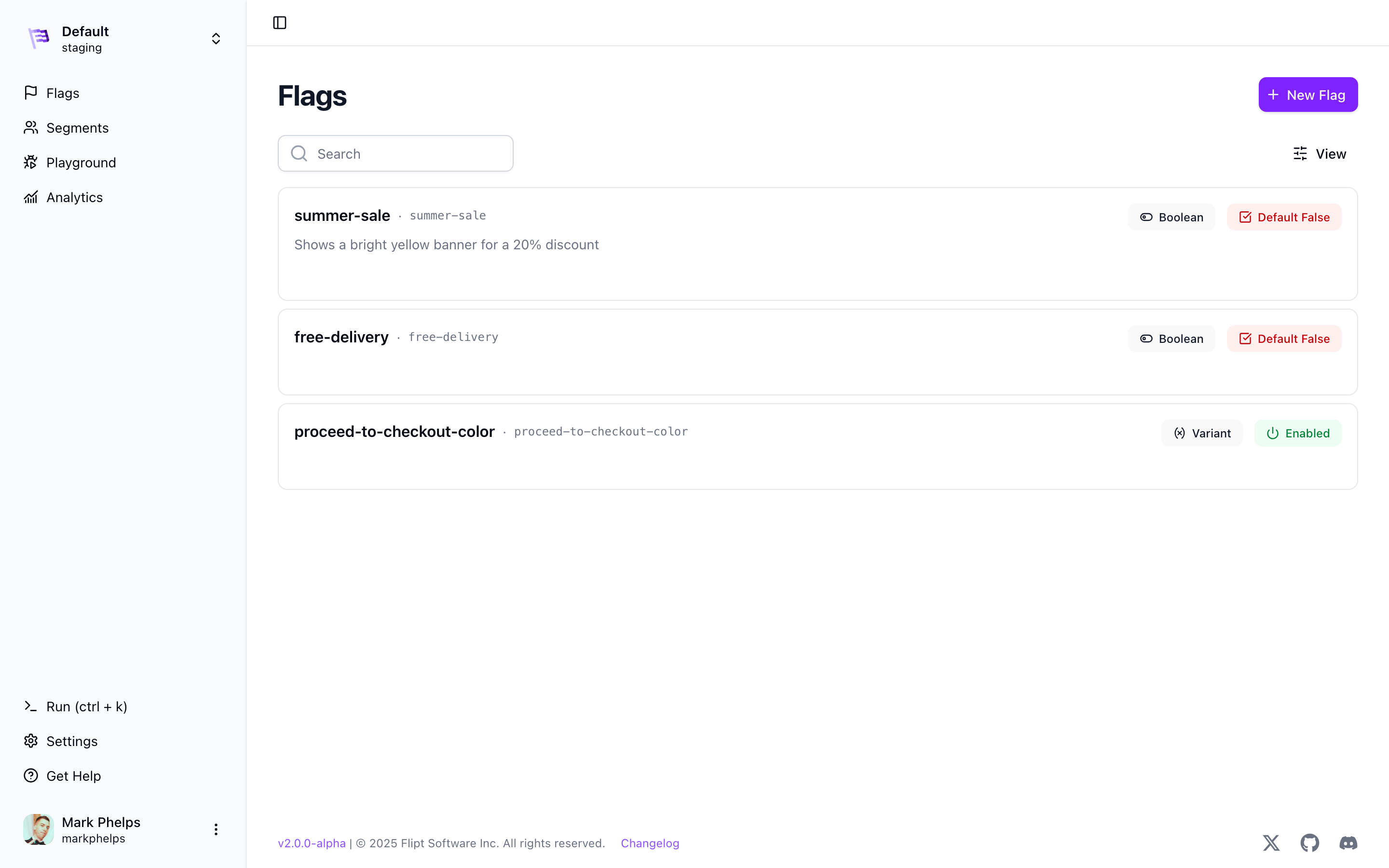

Flags are the basic unit in the Flipt ecosystem. Flags represent experiments or features that you want to be able to enable or disable for users of your applications. For example, a flag named New Contact Page could be used to determine whether or not a given user sees the latest version of a ‘Contact Us’ page that you are working on when they visit your homepage. Flags can be used as simple on/off toggles or with variants and rules to support more elaborate use cases. Flags There are two types of flags:
  • Variant which allows you to return a single variant for a given flag given a set of evaluation rules. This is the default flag type.
  • Boolean which allows you to return a boolean value for a given flag.

​
Variant Flags

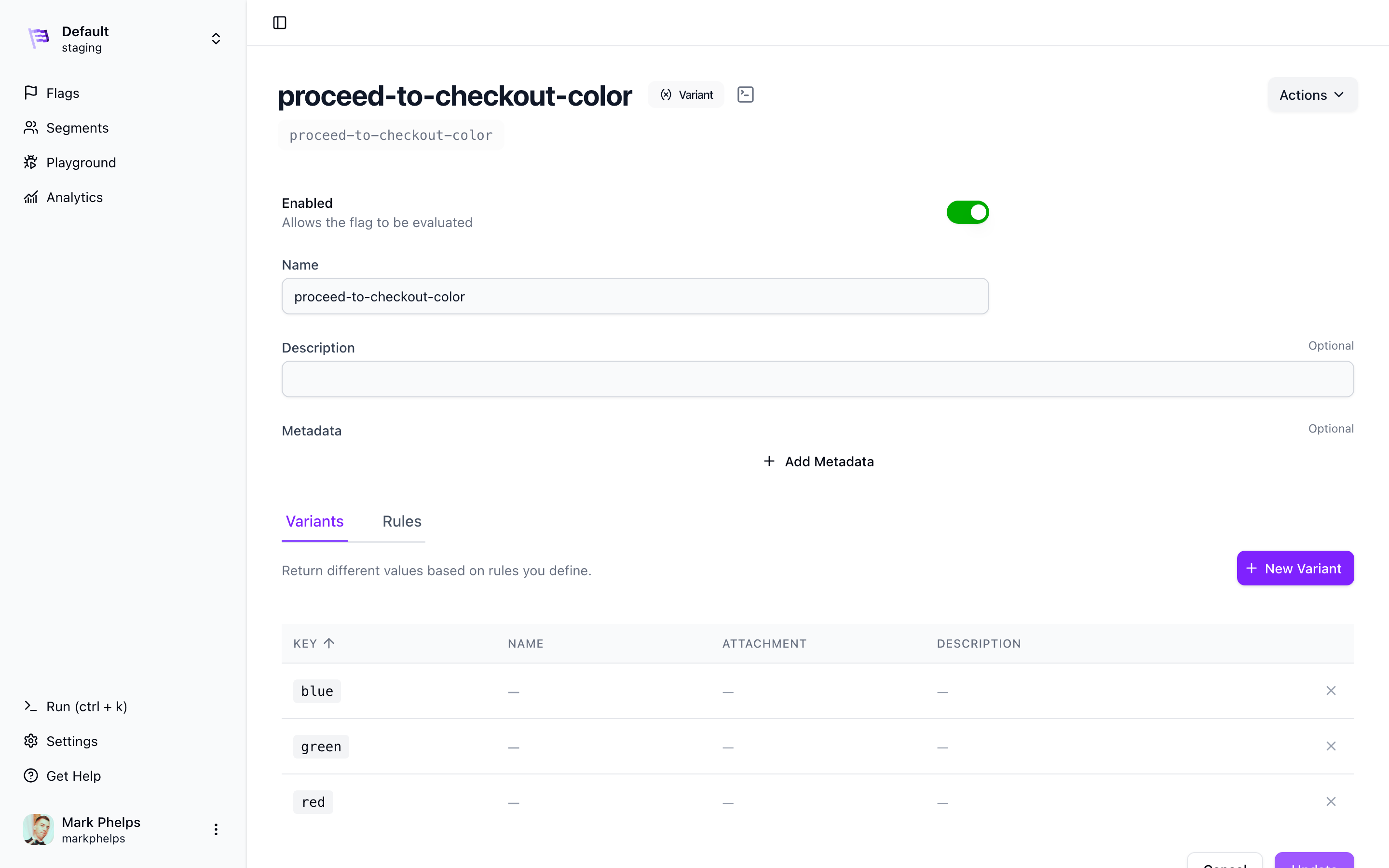

Variants are options for flags. For example, if you have a flag Proceed to Checkout Color that determines which color your users see when they proceed to checkout, then possible variants could include blue, red or green. Variant Flags

​
Variant Attachments

Variants can also have JSON attachments. This allows you to store additional data about a variant that can be used in your application at runtime.
Variant attachments are not used for evaluation, they are only used for runtime configuration.The attachment size is limited to 1MB.

​
Boolean Flags

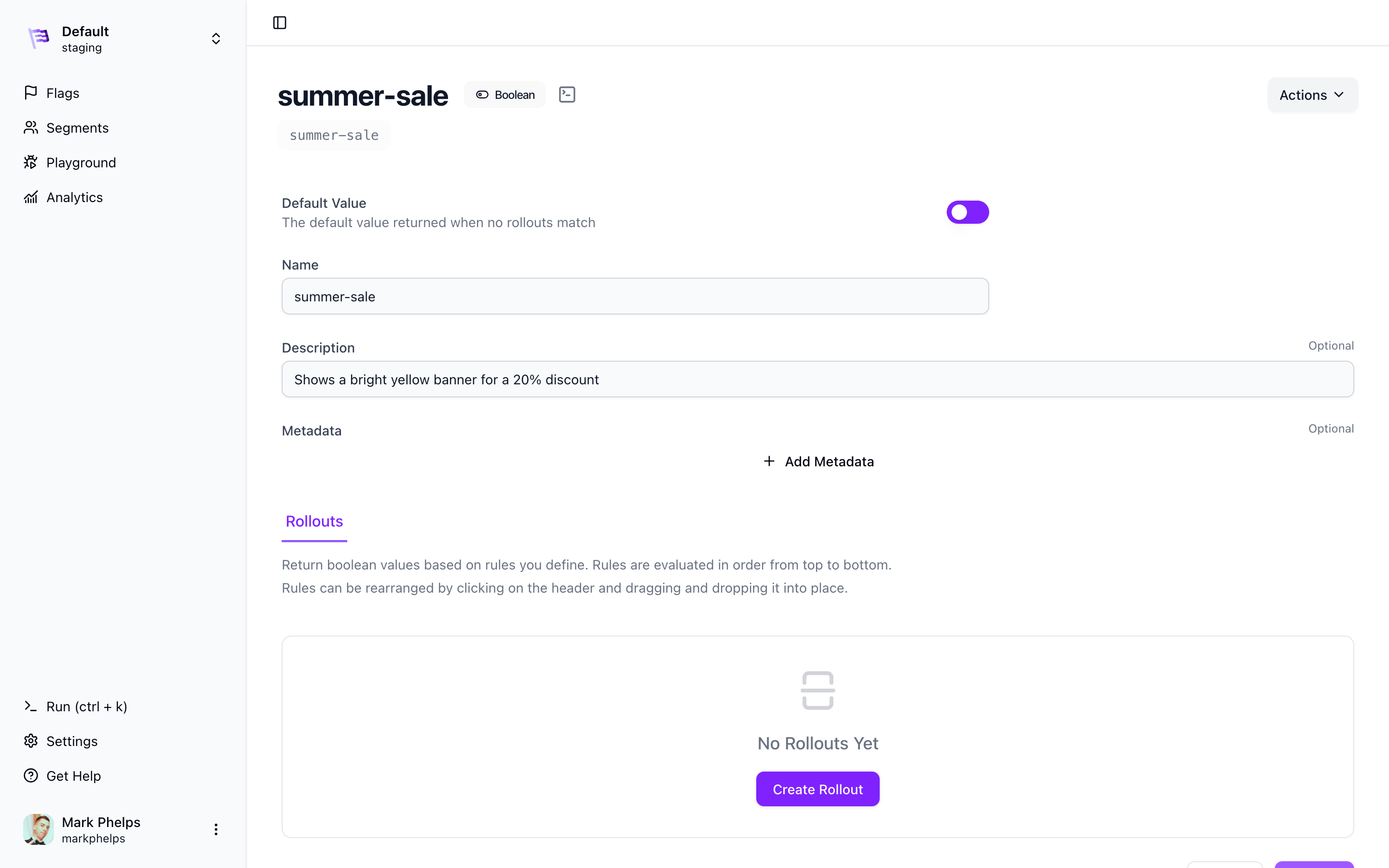

Boolean flags are a special type of flag that allow you to return a boolean value for a given flag. You can use boolean flags to determine if a feature is enabled or disabled for a given entity (user, device, etc) by returning true or false respectively. Boolean flags work well for simple use cases where you don’t need to return multiple variants. Boolean flags can be configured with rollout rules to determine which entities receive true or false for a given flag. Boolean Flags

​
Metadata

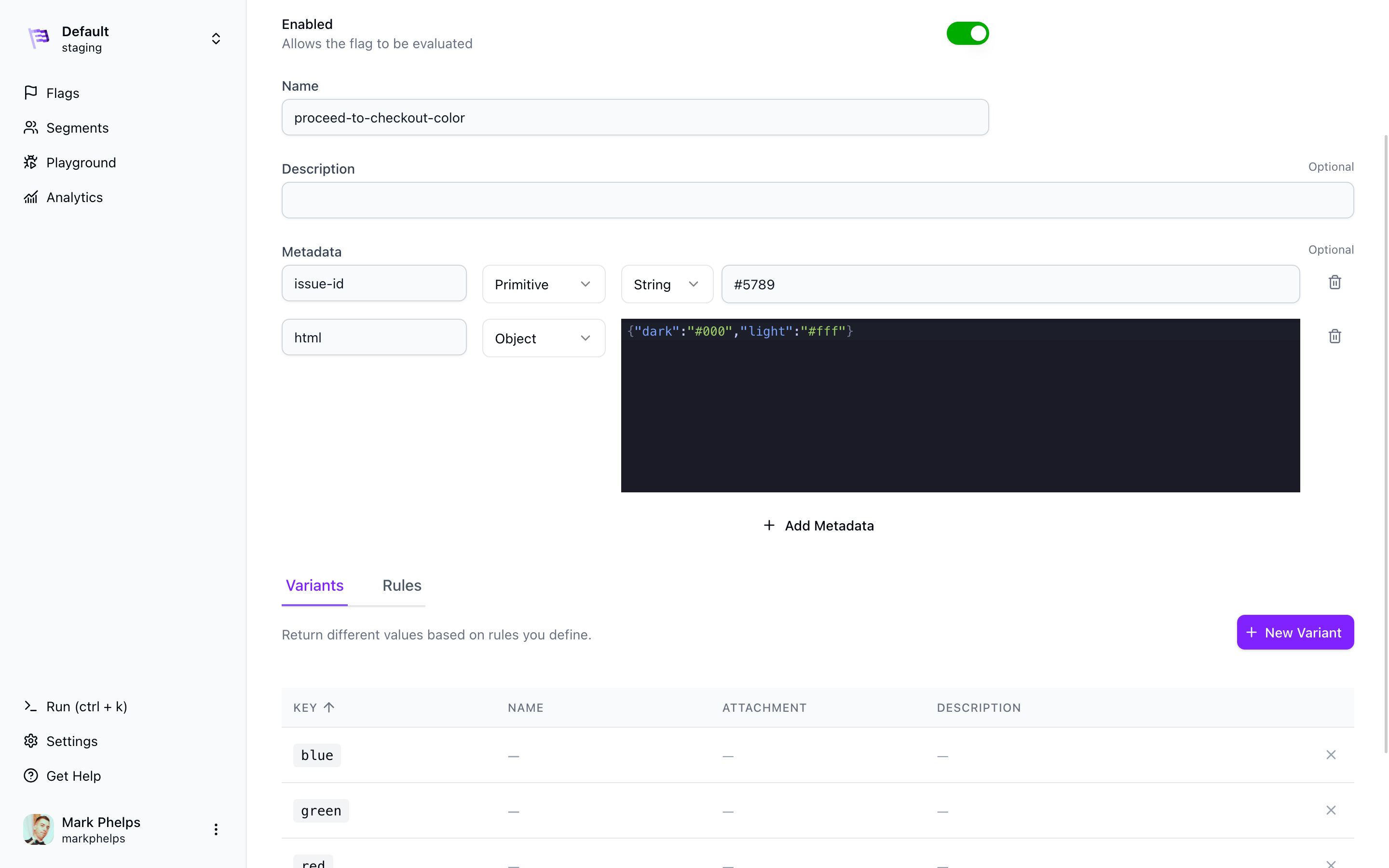

All flags can have metadata associated with them. This metadata is stored in the Flipt backend and can be used to add additional information about a flag. Metadata is stored as a JSON object and is not used for evaluation. You can retrieve flag metadata using the Get Flag API. In the Flipt UI, metadata is displayed in the flag details section. The UI allows you to add, edit, and delete metadata and provides a more user-friendly interface for managing metadata by specifying key-value pairs and their data types. Currently, the following data types are supported:
  • Primitive types: String, Number, Boolean
  • Complex types: Array, Object
Flag Metadata

​
Segments

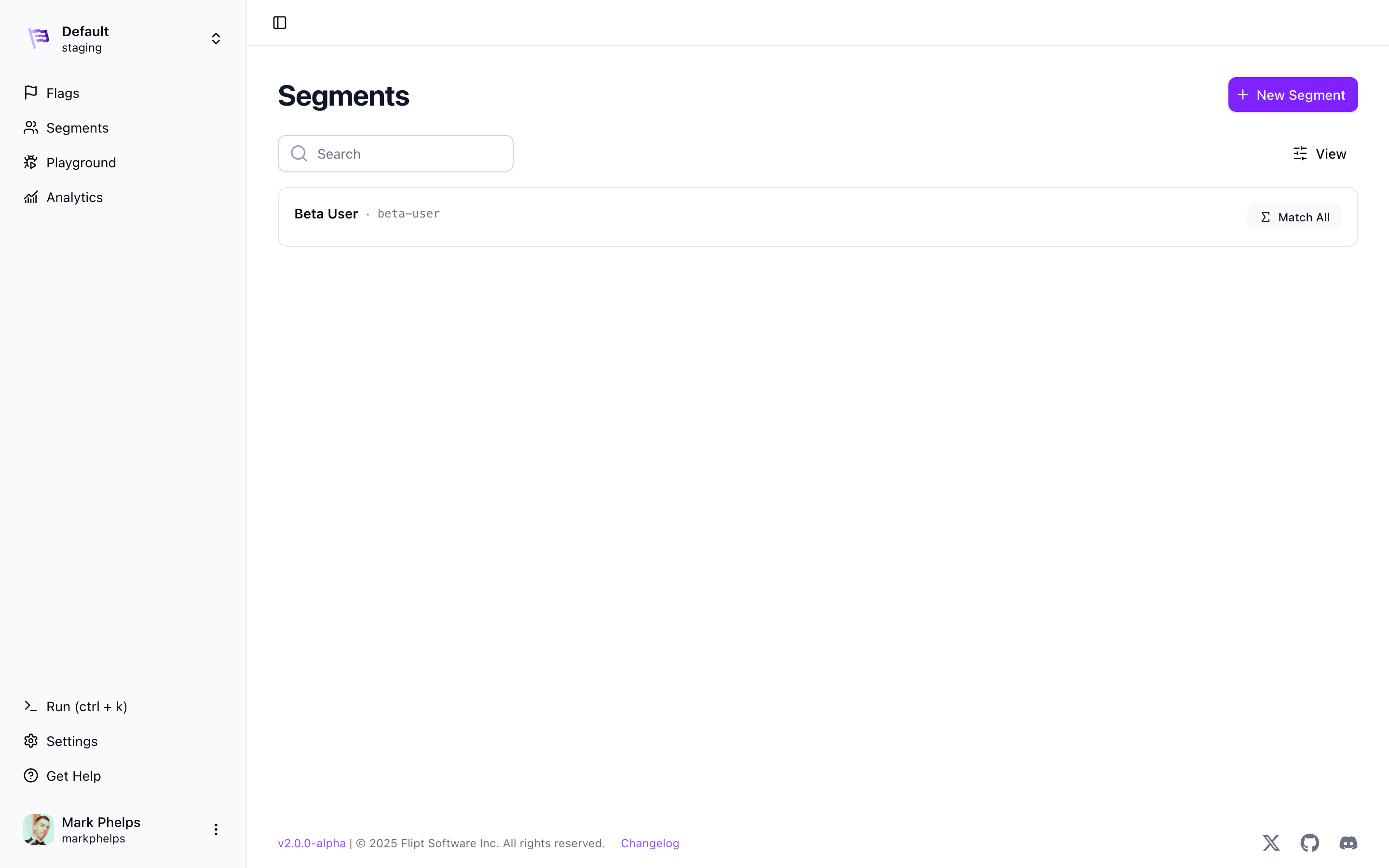

Segments allow you to split your user base or audience up into predefined slices. This is a powerful feature that enables targeting groups to determine if a flag or variant applies to them. An example segment could be beta-users. Segments
Segments are global within a Flipt namespace.

​
Match Types

When configuring a segment you can choose a Match Type of either:
  • Match All which requires ALL constraints to match for the segment to apply for evaluation.
  • Match Any which requires AT LEAST ONE constraint to match for the segment to apply for evaluation.

​
Constraints

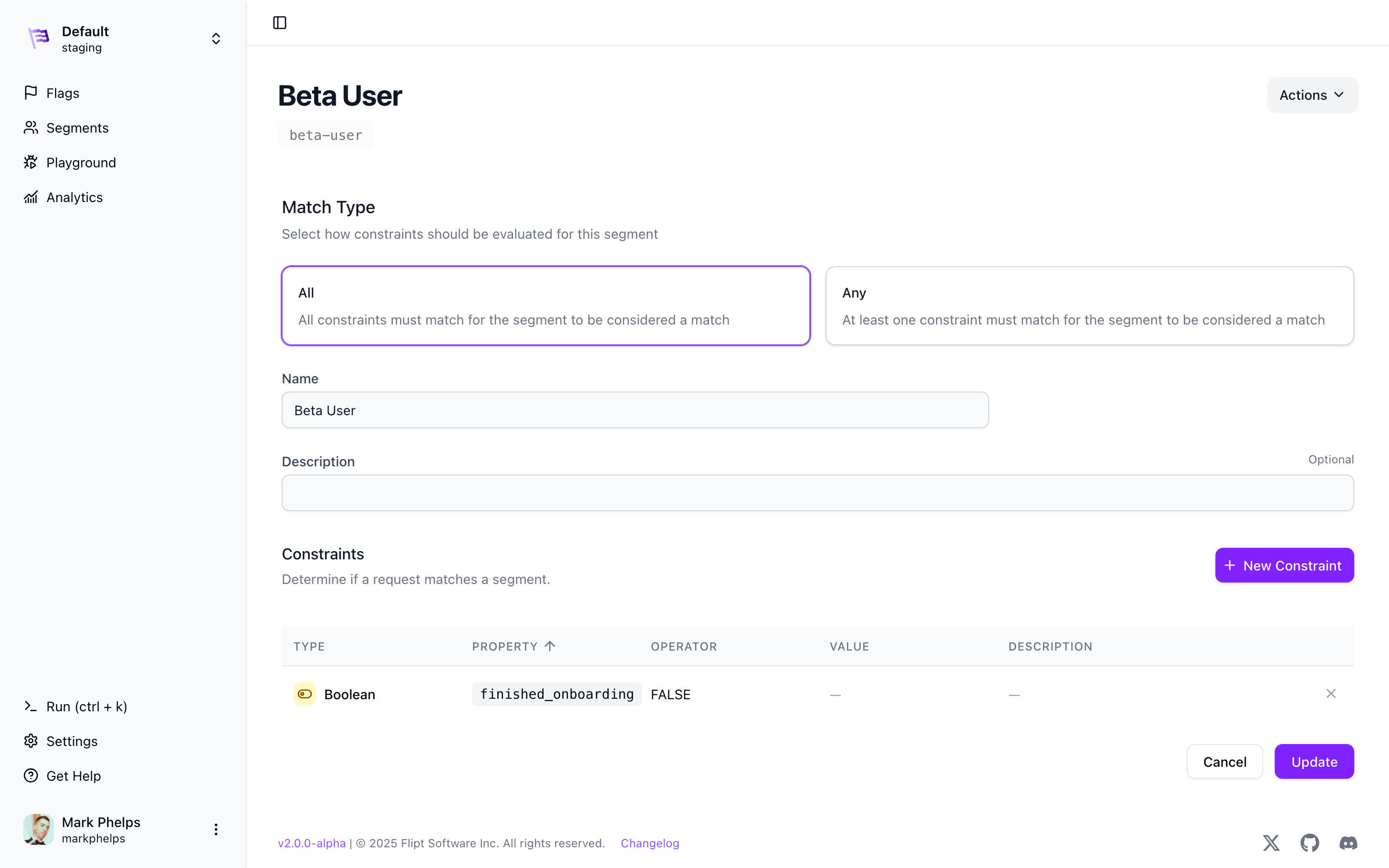

Constraints allow you to determine which segment a given entity is a part of. For example, for a user to fall into the above beta-users segment, you may want to check their finished_onboarding property. Constraints All constraints have a property, type, operator and optionally a value.

​
Constraint Types

Currently 5 constraint types are available:
  • String which allows you to check a string property of an entity
  • Number which allows you to check a number property of an entity (integer or float)
  • Boolean which allows you to check a boolean property of an entity such as true or false
  • DateTime which allows you to check a date or datetime property of an entity such as 2020-01-01 or 2020-01-01T00:00:00Z (RFC3339)
  • Entity which allows you to check the entityId that was sent in the body of the Variant or Boolean request
The constraint value is represented as a string in transit and in storage, however it’s coerced into the appropriate type for evaluation.

​
Rules

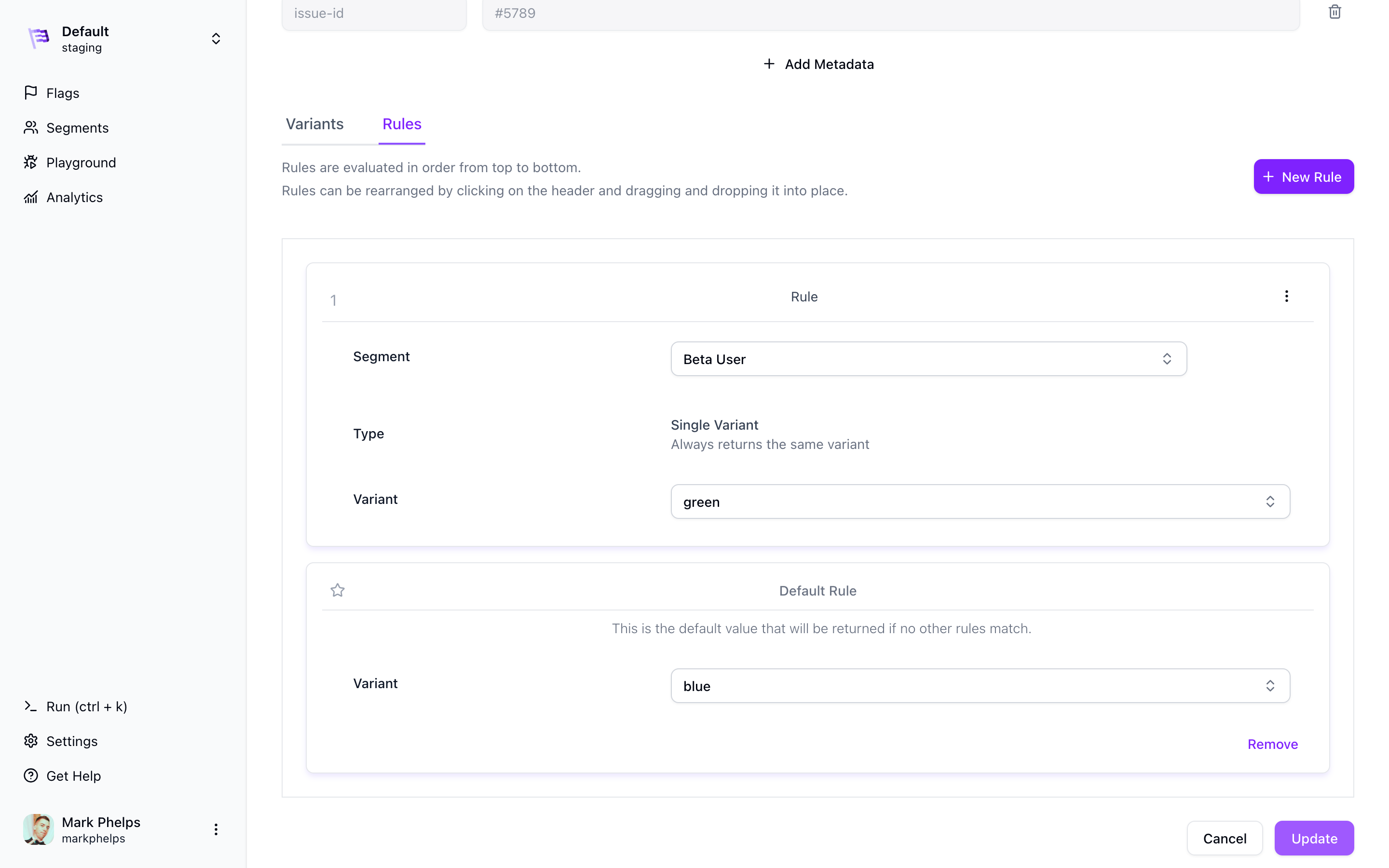

Rules allow you to tie your flags, variants and segments together by specifying which segments are targeted by which variants. Rules can be as simple as IF IN segment THEN RETURN variant_a or they can be richer by using distribution logic to roll out features on a percentage basis. Continuing our previous example, we may want to return the flag variant green for all entities in the beta-users segment. This would be configured like so: Rules Rules are evaluated in order per their rank from 1-N. The first rule that matches wins. Once created, rules can be re-ordered to change how they’re evaluated.

​
Default Rule

If no rules match for a given flag, the default rule value is returned. This value is optional and can be set to any variant that exists for the flag.

​
Distributions

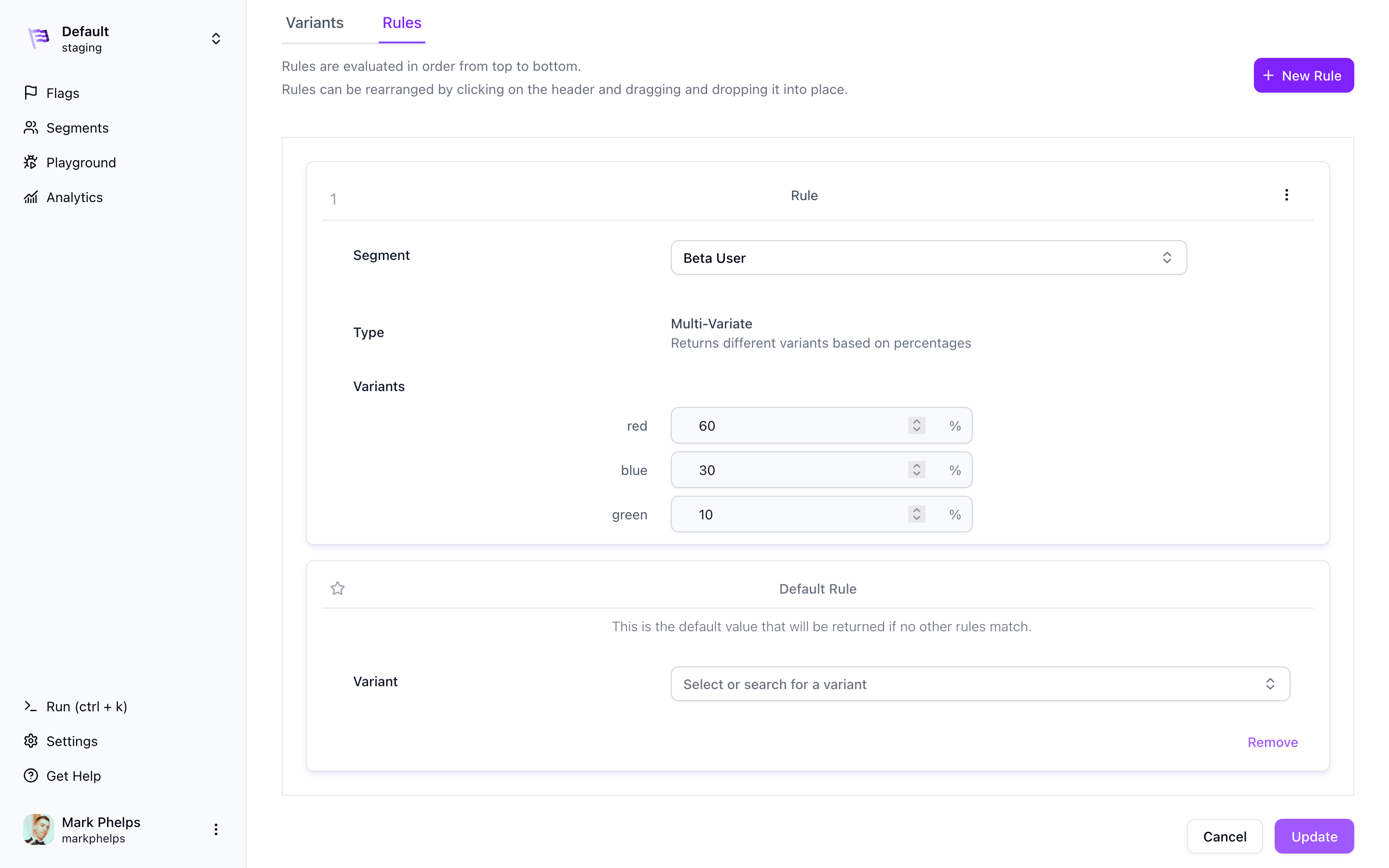

Distributions allow you to return different variants of your flag to different percentages of your user base based on your rules. Let’s say that instead of always showing the green variant to your beta-users segment, you want to show green to 10% of beta-users, blue to 30%, and red to the remaining 60%. You would accomplish this using rules with distributions: Distributions The ability to manage distributions, as illustrated in the image above, is an extremely powerful feature of Flipt that can help you seamlessly deploy new features of your applications to your users while also limiting the reach of potential bugs.

​
Rollouts

Rollouts allow you to potentially change the result of a boolean flag value at request time. Rollouts are a sequence of conditions which when one is matched for a request context, overrides the default rollout property. Current rollout types include:
  • Threshold which allows you to return true or false for a given percentage of entities.
  • Segments Match which allows you to return true or false if an entity matches a given segment.

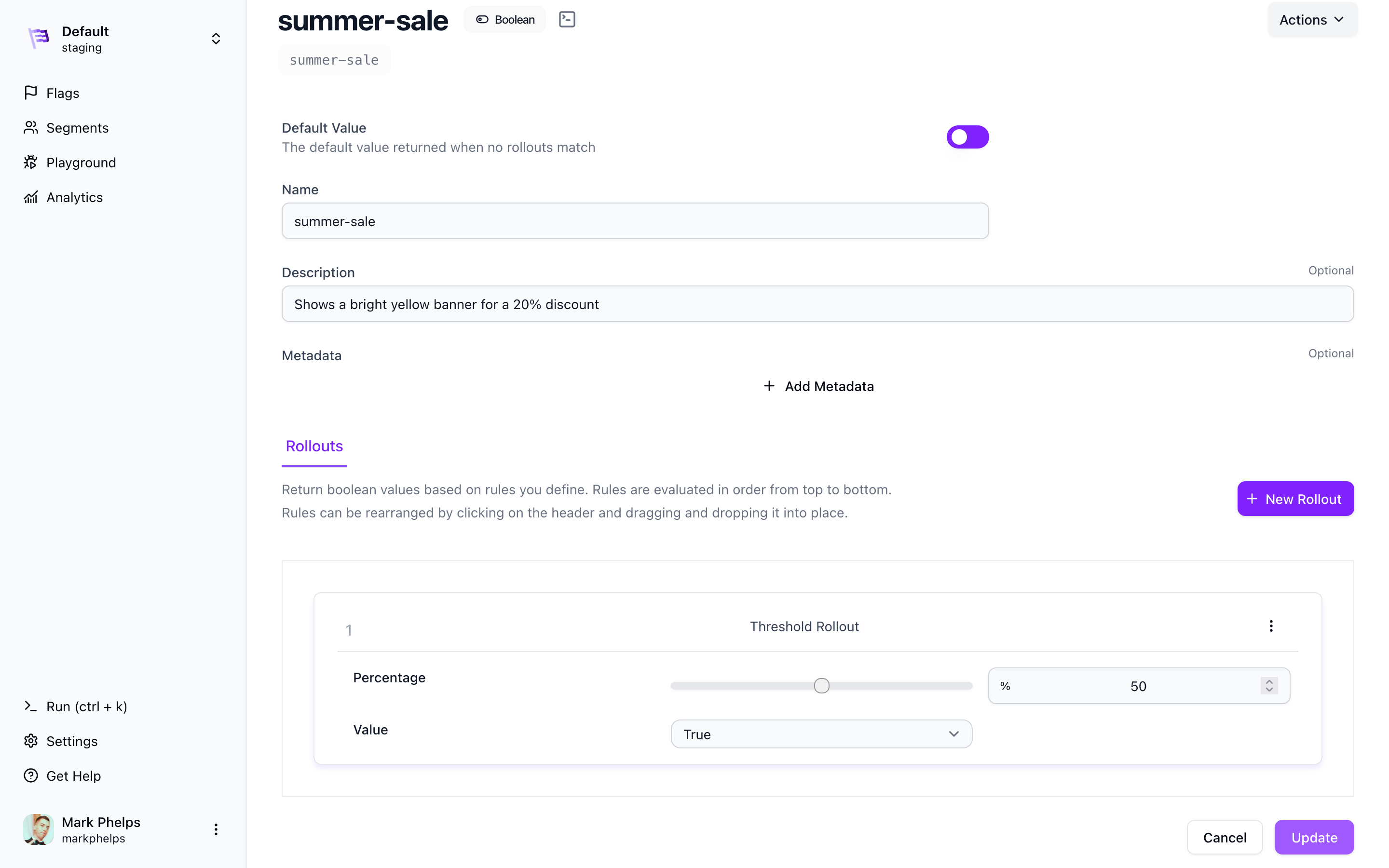

Rollouts Rollouts work similar to Rules in that they’re evaluated in order per their rank from 1-N. The first rollout that matches wins. Once created, rollouts can be re-ordered to change how they’re evaluated.

​
Default Rollout

If no rollouts match for a given flag, the default rollout value is returned. This value is the same as the ‘enabled’ value for the flag for backward compatibility reasons.

​
Evaluation

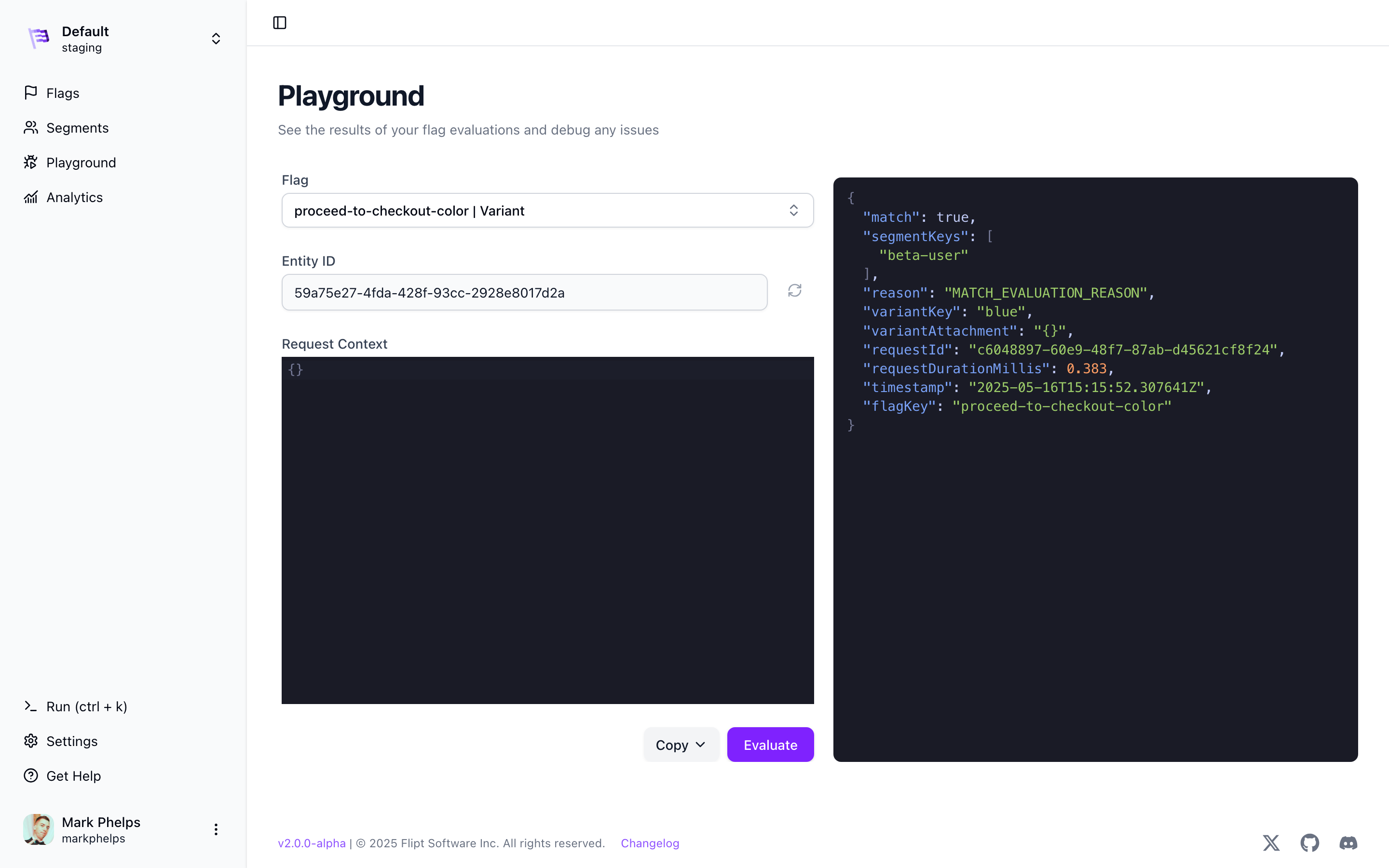

Evaluation is the process of sending requests to the Flipt server to process and determine if that request matches any of your segments and if so which variant or boolean value to return depending on flag type. In the above example involving checkout colors, evaluation is where you send information about your current user to determine if they’re a beta-user, and which color (green, blue, or red) that they should see for their checkout color. Evaluation

​
Entities

Evaluation works by uniquely identifying each thing that you want to compare against your segments and flags. We call this an entity in the Flipt ecosystem. More often than not this will be a user, but we didn’t want to make any assumptions about how your application works, which is why entity was chosen.
EntityWhat you want to test against in your application
For Flipt to successfully determine which bucket your entities fall into, it must have a way to uniquely identify them. This is the entityId and it’s a simple string. It’s up to you what that entityId is. It could be a:
  • email address
  • userID
  • IP address
  • physical address
  • etc
Anything that’s unique enough for your application and its requirements.

​
Context

The final piece of the puzzle is context. Context allows Flipt to determine which segment your entity falls into by comparing it to all the possible constraints that you defined.
ContextMetadata associated with your entity used to determine which if any segments that entity is a member of
Examples of context include:
- isAdmin
- favoriteColor
- country
- freeUser
Think of these as pieces of information that are usually not unique, but that can be used to split your entities into your segments. You can include as much or as little context for each entity as you want, however, the more context that you provide, the more likely it’s that an entity will match one of your segments. In Flipt, context is a simple map of key-value pairs where the key is the property to match against all constraints, and the value is what’s compared.

​
Bucketing

Bucketing is the process of determining which variant to return for a given evaluation request. Flipt uses a hashing algorithm to determine which variant to return for a given flagKey, entityID and context. This is what allows Flipt to return the same variant every time (also sometimes referred to as stickiness).
Flipt never persists any information about your entities or context or which variant was returned for a given evaluation request. This is all done at runtime and is ephemeral.This allows Flipt to be used in a wide variety of applications and use cases without having to worry about inadvertently storing personally identifiable information (PII) or other privacy concerns.
Let’s look at how it works:
  1. Flipt takes the flagKey and entityID and concatenates them together to form a string that looks like flagKey:entityID. This is called the key.
  2. Flipt then takes this new key and uses a hashing algorithm (CRC-32 ChecksumIEEE) to create a 32-bit integer called the hash.
  3. Flipt then creates a set of buckets from 0‐999 (1000 total buckets), mapping them with a sorted set of the distributions for the flag.
  4. Finally, Flipt takes the hash and uses the modulo operator to determine which bucket the hashed value falls into. The distribution that maps to that bucket is then returned.
Consider an example: Imagine that you have a flag with two distributions A and B. If distribution A has a 30% ‘rollout’, then it would ‘take up’ buckets 0‐299 (out of the 1000 buckets). Distribution B would take up the remaining buckets 300‐999. The flagKey/entityID hashed value is a 32bit integer on which Flipt performs a modulo operation (% 1000) so that it ‘s guaranteed to return a number between 0‐999. The result of the modulo operation is then used to determine which distribution to return via the bucket mapping. If the result is between 0‐299, then distribution A is returned, otherwise distribution B is returned.
