Get Going with GitOps

Why GitOps?

GitOps is a set of practices centered around storing your application and infrastructure configuration in Git. The goal being to leverage the capabilities of version-control for your entire systems configuration.

If you’re already embracing GitOps practices for your other configuration, then aligning your feature flags with these same practices can complete the experience. No more correlating what changed in Git, with what changed in your feature flag system to understand the entire state of the world. Git is the single source of truth as GitOps intended.

So how do we achieve this with Flipt?

What You’ll Learn

In this guide you will:

🏁 Add a feature flag to an existing codebase
📝 Define the flag via Flipt’s configuration format
🌲 Add, commit, and push the change to a production-serving branch
🎯 Adjust our configuration to target an internal group of users in our organization
🌓 Progressively enable the flag for proportions of the user base

Setting the Scene

Our guide starts with an imaginary organization with a single web application defined in Go and committed to a GitHub repository. We as the developer, have been tasked to experiment with a new sorting algorithm on an endpoint for our application.

Our application handles requests from authenticated users. These users also happen to be grouped into organizations. We will use this information in our targeting rules later on.

This endpoint happens to list out a bunch of strings in a JSON array. The sorting algorithm previously used was slow (Bubble Sort), and we want to try something new (Quicksort). While we feel confident in our implementation, we’re going to practice caution and release the change behind a feature flag.

Structure

If you want to follow along you can fork our gitops guide repository.

.
├── go.mod
├── go.sum
├── main.go
└── pkg
    └── server
        └── words.go

Our application lives in a directory committed to a Git repository. For the example’s sake, we assume the repository will be hosted on GitHub at https://github.com/organization/repository.git.

The target of our change is a http.HandlerFunc definition (in the file pkg/server/words.go) with the name ListWords. Currently, the function uses a sorting function bubblesort and we’re going to swap this for the quicksort function.

pkg/server/words.go

func (s *Server) ListWords(w http.ResponseWriter, r *http.Request) {
  words, err := getWords(r.Context())
  if err != nil {
    http.Error(w, err.Error(), http.StatusInternalServerError)
    return
  }

  bubblesort(words)

  if err := json.NewEncoder(w).Encode(words); err != nil {
    http.Error(w, err.Error(), http.StatusInternalServerError)
    return
  }
}

Calling Flipt

Instead of calling bubblesort directly, we’re going to use the Flipt Go SDK to switch this call based on the feature flag use-quicksort-algorithm.

This flag is going to be a boolean type flag, and so we use the sdk.Evaluation().Boolean() call to evaluate the enabled property of our flag. We provide this evaluation call with a request containing the flags key, an entity ID and a context map.

 func (s *Server) ListWords(w http.ResponseWriter, r *http.Request) {
   words, err := getWords(r.Context())
   if err != nil {
     http.Error(w, err.Error(), http.StatusInternalServerError)
     return
   }

- bubbleSort(words)
+ flag, err := s.flipt.Evaluation().Boolean(r.Context(), &evaluation.EvaluationRequest{
+   FlagKey: "use-quicksort-algorithm",
+   EntityId: getUser(r.Context()),
+   Context: map[string]string{
+     "organization": getOrganization(r.Context()),
+   },
+ })
+
+ if flag.Enabled {
+   quicksort(words)
+ } else {
+   bubblesort(words)
+ }

   if err := json.NewEncoder(w).Encode(words); err != nil {
     http.Error(w, err.Error(), http.StatusInternalServerError)
     return
   }
 }

The entity ID used here is going to be an identifier for the requests authenticated user. This is returned by the call to getUser(r.Context()).

Our context map is going to contain a single key organization, which is populated by a call to getOrganization(r.Context()). This will also return an identifier, only this time for the requesting user’s organization.

Flipt’s Declarative Backends

The focus of this guide is to leverage Flipt’s new “declarative backends” to enable a GitOps workflow. The name comes from the fact that the backend for Flipt is modeled around configuration files in a directory structure. These configuration files can coexist in a directory alongside other content (application code or other configuration code).

There currently exist four top-level declarative backend types:

local (local directory)
git (remote Git repository and branch)
object (object storage, AWS S3 or Azure Blob Storage or Google Cloud Storage)
oci (OCI registry storage)

In this guide we will explore both the local and git backend types.

Defining Flag State Locally

In order for our application to work, it now depends on communicating with an instance of Flipt. We’re going to configure our instance using a features.yml file in the root of our existing project. Then we will configure Flipt to serve directly from our local directory.

You don’t have to call your file features.yml and you can spread your flag definitions across multiple files. Checkout our docs on locating flag state to learn more.

 .
+├── features.yml
 ├── go.mod
 ├── go.sum
 ├── main.go
 └── pkg
     └── server
         └── words.go

The contents of this file is going to start out with the definition of the use-quicksort-algorithm flag. This flag will be a boolean type flag and be in a disabled (enabled = false) state.

features.yml

version: "1.2"
namespace: default
flags:
- key: use-quicksort-algorithm
  name: Use Quicksort Algorithm
  type: BOOLEAN_FLAG_TYPE
  enabled: false

Running Flipt Locally

Now the flag is defined in the current directory, we can run Flipt and configure the directory as the source of truth. This is useful for validating behaviour locally, before committing and pushing flag state to a production tracked Git repository.

The following command runs Flipt in Docker, with the local directory mounted and Flipt configured appropriately.

docker run -it --rm \
  -p 8080:8080 \
  -p 9000:9000 \
  -v "$(pwd):/data" \
  -e FLIPT_STORAGE_TYPE=local \
  -e FLIPT_STORAGE_LOCAL_PATH=/data \
  flipt/flipt:latest

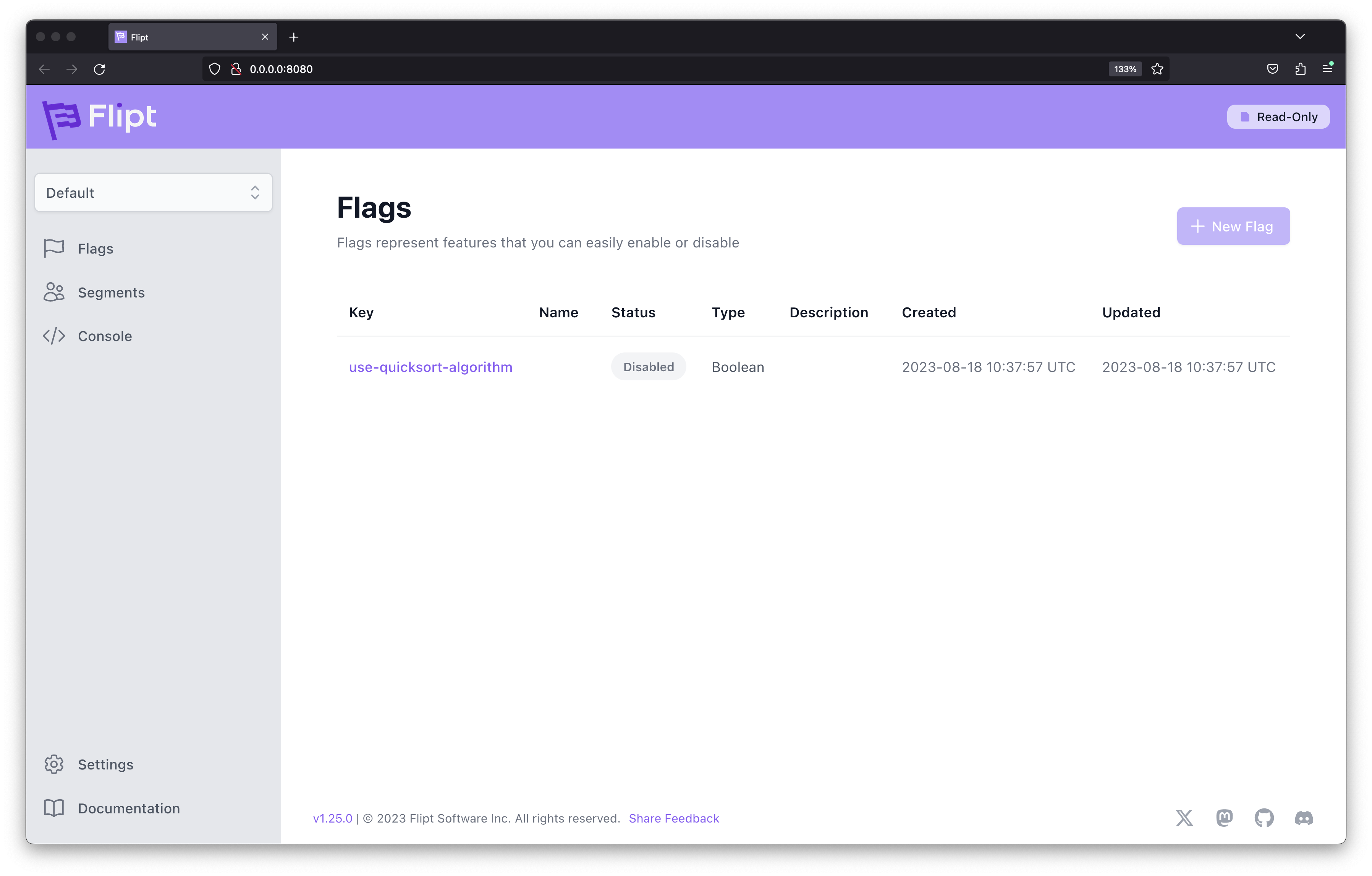

This image demonstrates what can be seen in the Flipt UI with the configuration file we defined being served.

Now that Flipt is running locally, our application can also be run and configured to target our local instance of Flipt available at both http://localhost:8080 and grpc://localhost:9000 (depending on your protocol of choice). The UI is also available on port 8080, however, it’s running in read-only mode since flag state is configured via the configuration file we defined before.

Running Flipt Over Git

The local backend is useful for experimenting and exploring flag state in your development environment. However, in a production setting, both the git and the object storage types are more appropriate. Focussing on git, the following command runs Flipt with a remote Git repository hosted on GitHub and tracking the main branch.

docker run -it --rm \
  -p 8080:8080 \
  -p 9000:9000 \
  -e FLIPT_STORAGE_TYPE=git \
  -e FLIPT_STORAGE_GIT_REPOSITORY=https://github.com/organization/repository.git \
  -e FLIPT_STORAGE_GIT_REF=main \
  -e FLIPT_STORAGE_GIT_AUTHENTICATION_BASIC_USERNAME=username \
  -e FLIPT_STORAGE_GIT_AUTHENTICATION_BASIC_PASSWORD=github-personal-access-token \
  flipt/flipt:latest

In this example, Flipt has been configured to serve directly from our pretend repository with our application code in it. Flipt will track the HEAD of this repository’s main branch. Changes will eventually propagate into our running instance of Flipt.

Head to Configuration: Storage: Declarative Backends to learn more about configuring these backend types for Flipt.

Pushing Our New Flag To Production

For sake of this demonstration, we’re going to assume Flipt has been deployed and configured in this way for our production environment. Our production deployment of our words endpoint will also have been configured to connect to this running instance of Flipt.

Given our repository is now being tracked and served by Flipt, we can add, commit, and push both our changes to our endpoint, as well as our new features.yml file to our branch main.

git add pkg/server/words.go

git add features.yml

git commit -m "feat: define the use-quicksort-algorithm flag"

git push origin main

Once Flipt has received the updated reference, our flag should be available through Flipt’s API. The code change we added can now safely reference the present flag, which is currently in a disabled state.

You can use curl to ensure the service is still behaving as expected:

# the -w option prints timing output at the end
curl -w "\nTotal: %{time_total}s\n" "http://localhost:8000/words"

Next we will begin to enable the flag under different conditions.

Targeting and Rollouts

Now that our application is deployed with our code change and is referencing our new flag, we can adjust the state via the configuration file and push the changes to Git.

We will start by checking out a new branch, as we’re going to propose our change as a pull request and get review from a colleague.

git checkout -b enable-flag-for-internal-organization

Internal Users

We open the features.yml file and update the definition with a new segment and add a rollout rule on our flag which returns enable = true when the request matches our new segment.

 version: "1.2"
 namespace: default
 flags:
 - key: use-quicksort-algorithm
   name: Use Quicksort Algorithm
   type: BOOLEAN_FLAG_TYPE
   enabled: false
+  rollouts:
+  - segment:
+      key: internal-users
+      value: true
+segments:
+- key: internal-users
+  name: Internal Users
+  match_type: ANY_MATCH_TYPE
+  constraints:
+  - property: organization
+    operator: eq
+    value: internal
+    type: STRING_COMPARISON_TYPE

Breaking this change down we’ve got:

The `internal-users` Segment

features.yml

# ...
segments:
- key: internal-users
  name: Internal Users
  match_type: ANY_MATCH_TYPE
  constraints:
  - property: organization
    operator: eq
    value: internal
    type: STRING_COMPARISON_TYPE

This segment definition matches any evaluation request where there exists a key organization on the context, with a value internal. Remember we added the key organization earlier when defining the flag in code. We used a value derived from the request (getOrganization(r.Context())). This got the organization identifier for the calling user. Now, when the user happens to be associated with the internal organization, it will match the internal-users segment in Flipt.

A New Segment Rollout Rule

features.yml

flags:
- key: use-quicksort-algorithm
  # ...
  rollouts:
  - segment:
      key: internal-users
      value: true

Finally, we add a rollout rule to our boolean flag. This rule allows us to override the enabled property of the flag under certain conditions. In this instance, we’re using the segment type rule to say when the request matches the internal-users segment, return the value true.

Now our flag is configured to target internal users and enable the Quicksort algorithm for those users instead.

Proposing and Integrating Our Change

Next, we add, commit, and push the change to our branch.

git add features.yml

git commit -m "feat: enable use-quicksort-algorithm for internal-users"

git push enable-flag-for-internal-organization

From here, we can open a pull-request and get feedback from our team. Once approval has been given, we can merge the PR and the change goes live. When the change has been merged into main, Flipt will eventually start serving this new configuration change.

We can now request our application as an authenticated user. Users inside the internal organization should get results sorted with the new Quicksort algorithm. Whereas, the rest of users should still be served using the old Bubble Sort algorithm.

Validating the change before exposing it to a wider audience is your opportunity to identify and fix any issues. Perhaps the algorithm is incorrect, maybe the order has reversed or has become unstable for some entries. You can fix those changes now before targeting more users.

curl -w "\nTotal: %{time_total}s\n" "http://localhost:8000/words?org=internal-users"

Proportional Rollout

Once we’re confident our change is working as expected, since we’ve validated the change in production for internal users, we can start to roll it out to external users.

The flipt binary has the sub-command flipt validate. This can be used to statically validate your Flipt feature configuration files. You can install this to run during a CI step and catch bugs before merging changes into main.

For GitHub, try our pre-built Flipt Setup Action.

We could enable the flag for all users at once, but there is always a chance we’ve missed something during manual validation. Everyone has the best intentions, however. things get missed. So instead we’re going to start slow and gradually enable it for percentages of our user base. This will give the change time to bake with your audience. If anything is wrong, we’ve minimized the effected users to a small subset.

Once again we’re going to checkout a branch.

git checkout -b enable-flag-for-20-percent

Then we’re going to edit features.yml and add a threshold percentage rule.

 version: "1.2"
 namespace: default
 flags:
 - key: use-quicksort-algorithm
   name: Use Quicksort Algorithm
   type: BOOLEAN_FLAG_TYPE
   enabled: false
   rollouts:
   - segment:
       key: internal-users
       value: true
+  - threshold:
+      percentage: 20
+      value: true
 segments:
 - key: internal-users
   name: Internal Users
   match_type: ANY_MATCH_TYPE
   constraints:
   - property: organization
     operator: eq
     value: internal
     type: STRING_COMPARISON_TYPE

Again, breaking this change down:

A New Threshold Rollout Rule

Here we’re adding a new, different rollout rule type to our existing flag. Note that we’ve left our segment targeting rule intact.

This means our flag will remain enabled for internal users. Rollout rules are evaluated on each request in order. The first rule to match will result in the flags enabled property returning the configured value. If no rules match, then the flags top-level enabled property is used as the final default return value.

features.yml

flags:
- key: use-quicksort-algorithm
# ...
- segment:
    key: internal-users
    value: true
- threshold:
    percentage: 20
    value: true

This threshold percentage is set to 20, meaning roughly 20% of entity IDs will match and cause the flag to return enabled = true.

Head to Concepts: Bucketing to learn how this mechanism is actually achieved.

Proposing and Integrating Our Change

Once again, we add, commit, and push the change to our branch.

git add features.yml

git commit -m "feat: enable use-quicksort-algorithm for 20% of users"

git push enable-flag-for-20-percent

From here, we can open a pull-request and get feedback from our team. Once we’ve got approval, we can merge the PR and the change goes live.

Closing the Loop

This process can be repeated, each time increasing the percentage property of this newly added threshold rollout rule. Once we get to the stage of enabling the flag for 100% of users, we can either set the percentage to 100 or we can remove the targeting rules altogether and set the enabled property to true.

features.yml

version: "1.2"
namespace: default
flags:
- key: use-quicksort-algorithm
  name: Use Quicksort Algorithm
  type: BOOLEAN_FLAG_TYPE
  enabled: true

Beyond this, we can further close the loop by removing the feature flag call from our application code and simply use the new quicksort function.

pkg/server/words.go

func (s *Server) ListWords(w http.ResponseWriter, r *http.Request) {
  words, err := getWords(r.Context())
  if err != nil {
    http.Error(w, err.Error(), http.StatusInternalServerError)
    return
  }

  quicksort(words)

  if err := json.NewEncoder(w).Encode(words); err != nil {
    http.Error(w, err.Error(), http.StatusInternalServerError)
    return
  }
}

Recap

We’ve successfully rolled a feature out to production using GitOps practices via Flipt’s declarative feature flag configuration files and declarative backends. Along the way, we had the opportunity to use Git to understand the current state of the world. At each commit, we could’ve fully recreated the configuration of our entire application, including the state of Flipt itself.

Further Considerations

Now you have all the tools necessary to practice GitOps with your feature flags.

You might want to consider the object or the oci backend if your source Git repositories are too large (we’re working on a guide for that now).

The declarative storage backends currently mandate that the UI is read-only. We’ve thoughts on how this could change in the future, but for now, this is a limitation. You always have your editor, Git and the SCMs (GitHub, Gitlab etc) for state management in the meantime.

Each of these backends work by polling their sources (git, oci, local directory or object store) and the interval can be configured. Checkout the Configuration: Storage: Declarative for details on adjusting these intervals.
