Concepts

More information on how to use Flipt is noted in the Getting Started documentation.

​

Namespaces

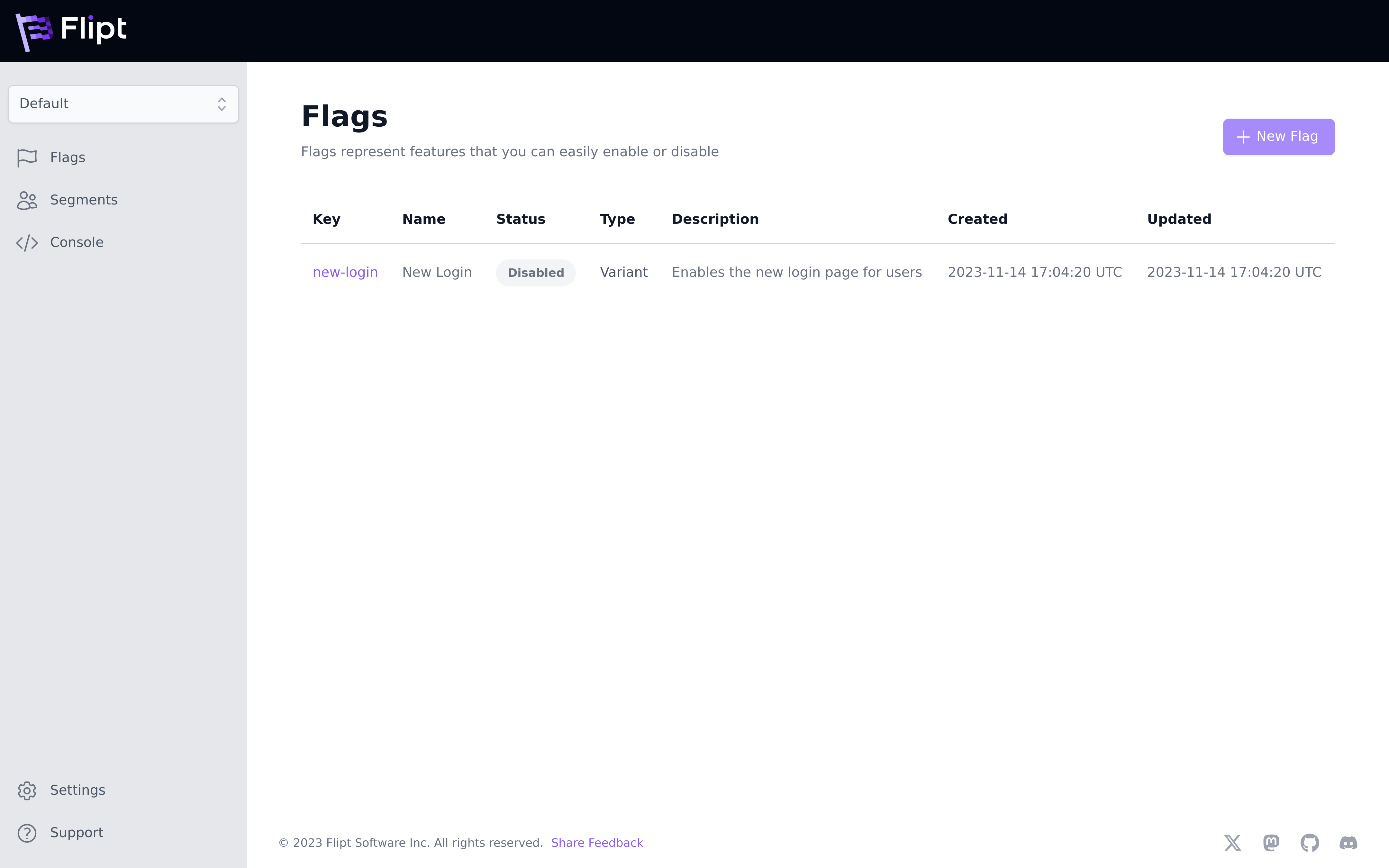

Namespaces are the recommended way to organize all resources such as Flags, Segments, Rules, etc within Flipt.

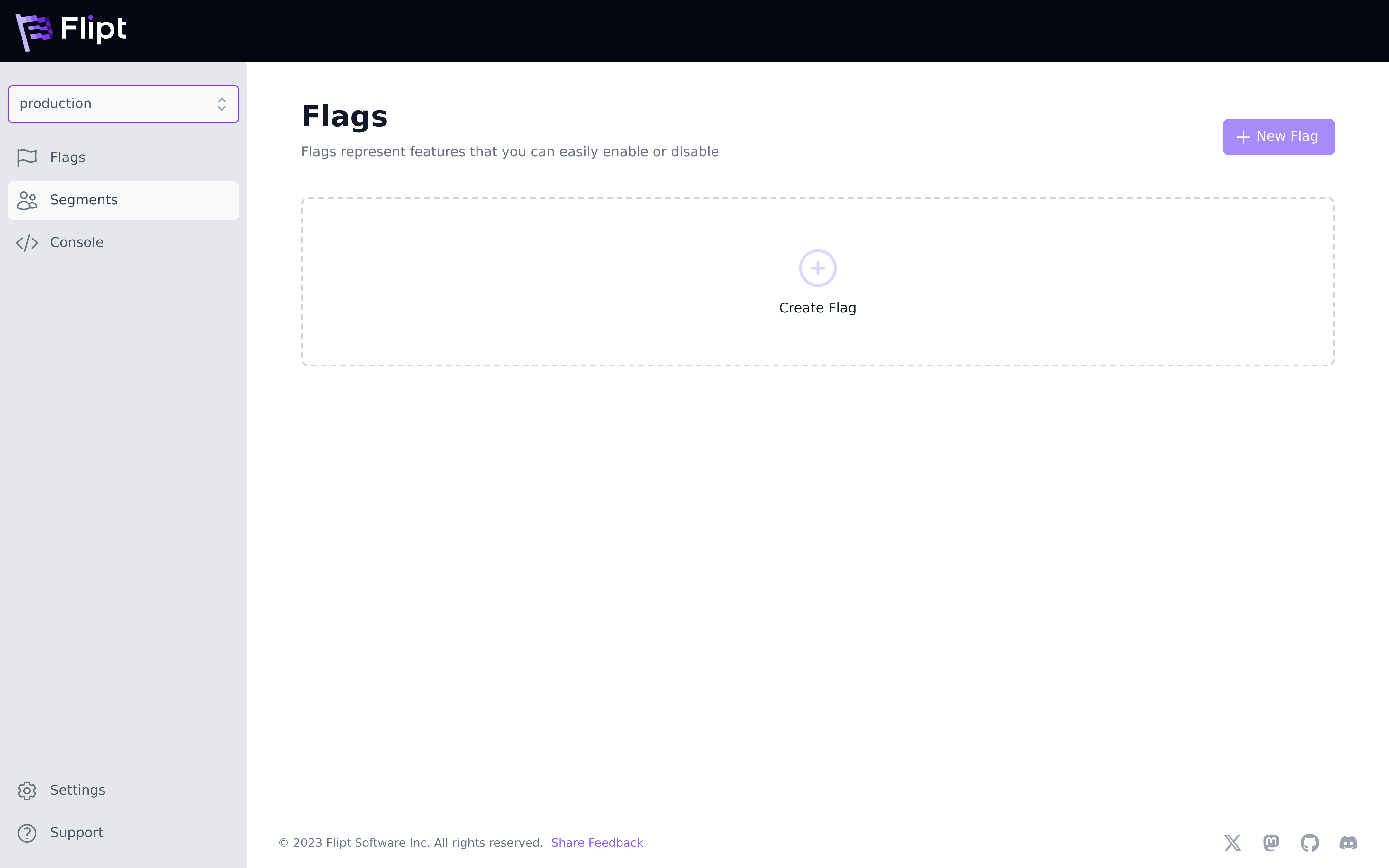

Namespaces allow you to separate all data within Flipt for use in different environments such as Development, Staging, Production, etc.

Another common use-case of Namespaces is to separate Flipt data by internal team or organization.

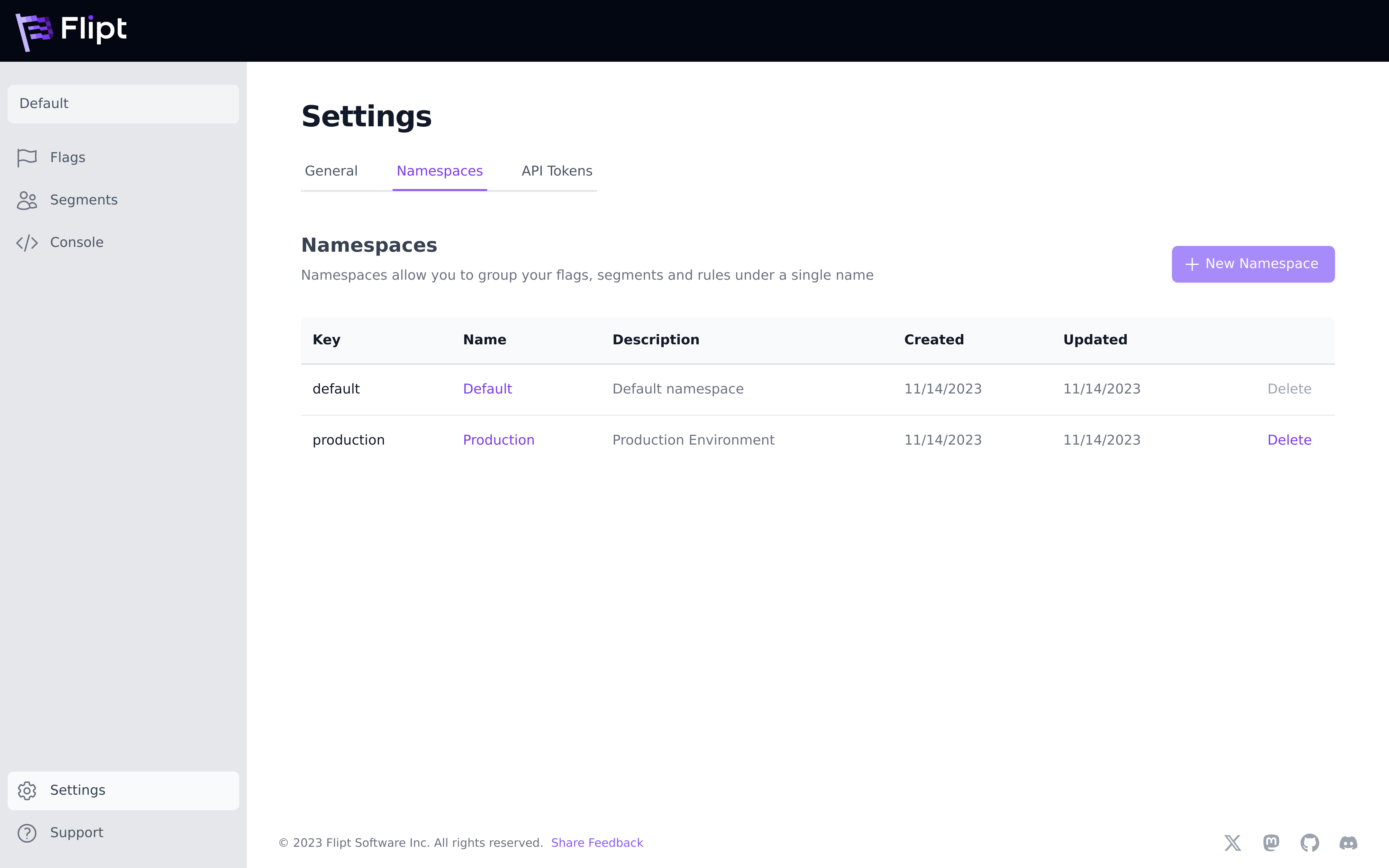

Namespaces can be managed within the Settings section of the Flipt UI:

​

Flags

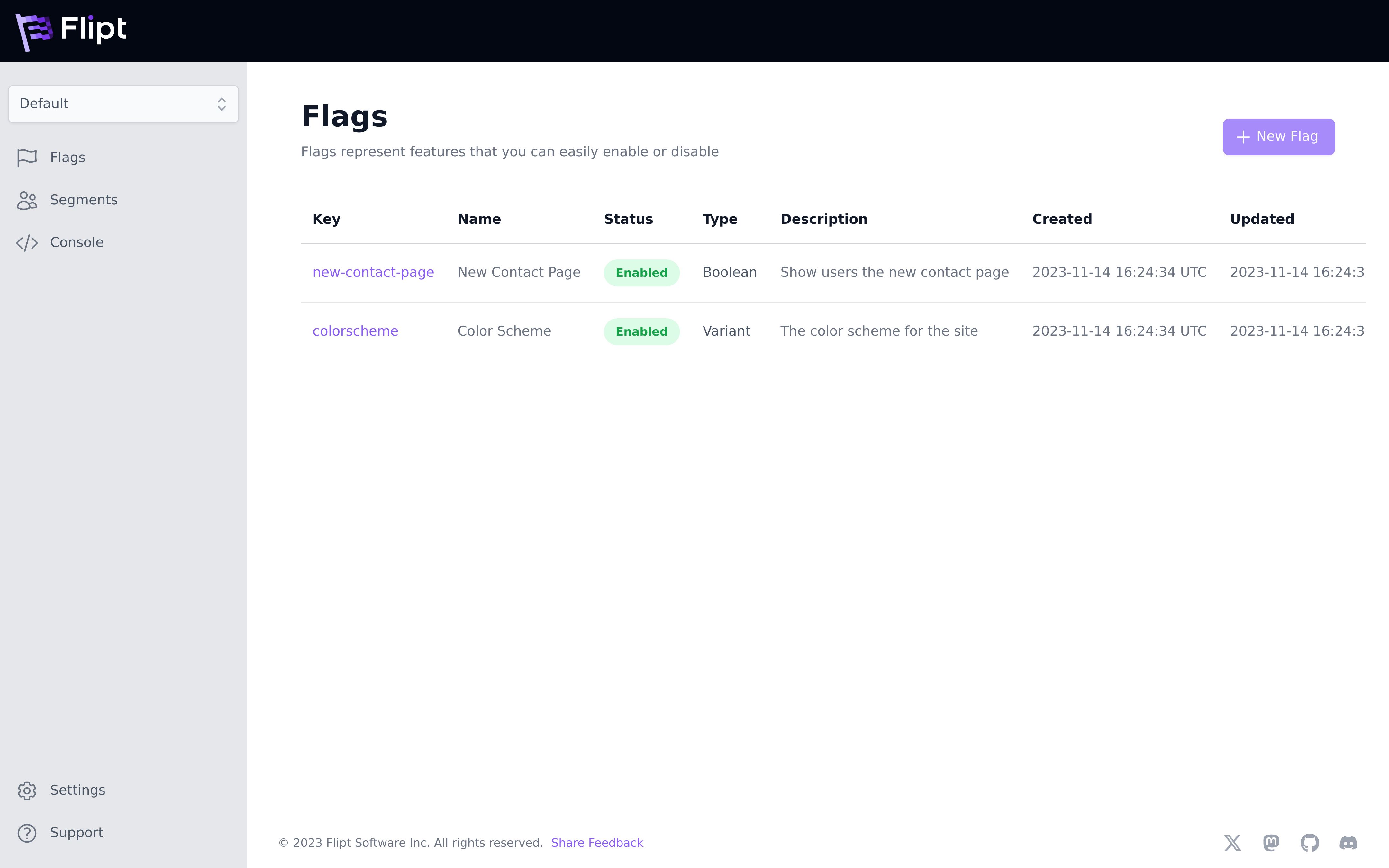

Flags are the basic unit in the Flipt ecosystem. Flags represent experiments or features that you want to be able to enable or disable for users of your applications.

For example, a flag named new-contact-page could be used to determine whether or not a given user sees the latest version of a ‘Contact Us’ page that you are working on when they visit your homepage.

Flags can be used as simple on/off toggles or with variants and rules to support more elaborate use cases.

There are two types of flags:

• Variant which allows you to return a single variant for a given flag given a set of evaluation rules. This is the default flag type.
• Boolean which allows you to return a boolean value for a given flag.

​

Variant Flags

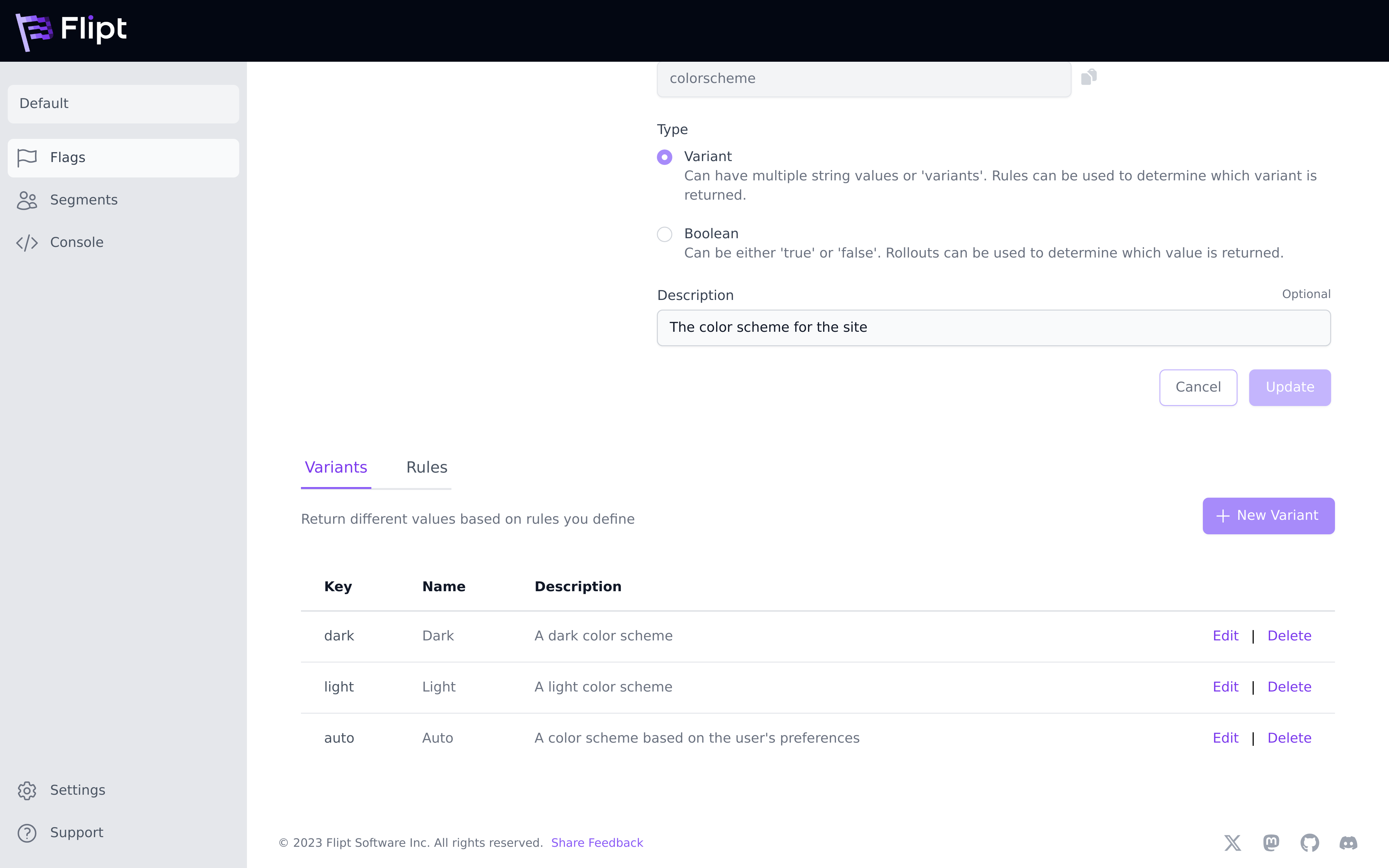

Variants are options for flags. For example, if you have a flag colorscheme that determines which main colors your users see when they login to your application, then possible variants could include dark, light or auto.

​

Variant Attachments

Variants can also have JSON attachments. This allows you to store additional data about a variant that can be used in your application at runtime.

​

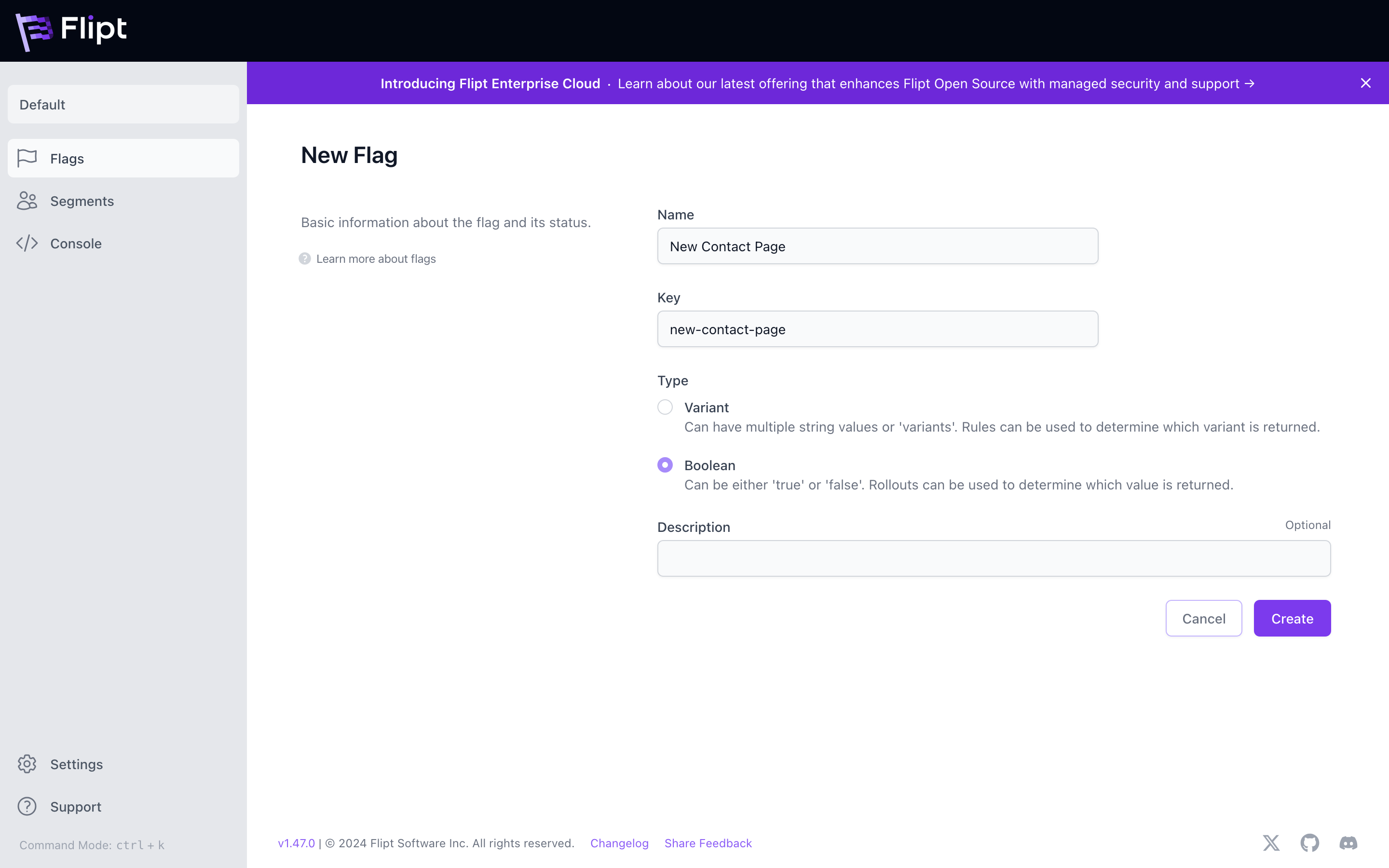

Boolean Flags

Boolean flags are a special type of flag that allow you to return a boolean value for a given flag.

You can use boolean flags to determine if a feature is enabled or disabled for a given entity (user, device, etc) by returning true or false respectively. Boolean flags work well for simple use cases where you don’t need to return multiple variants.

Boolean flags can be configured with rollout rules to determine which entities receive true or false for a given flag.

​

Segments

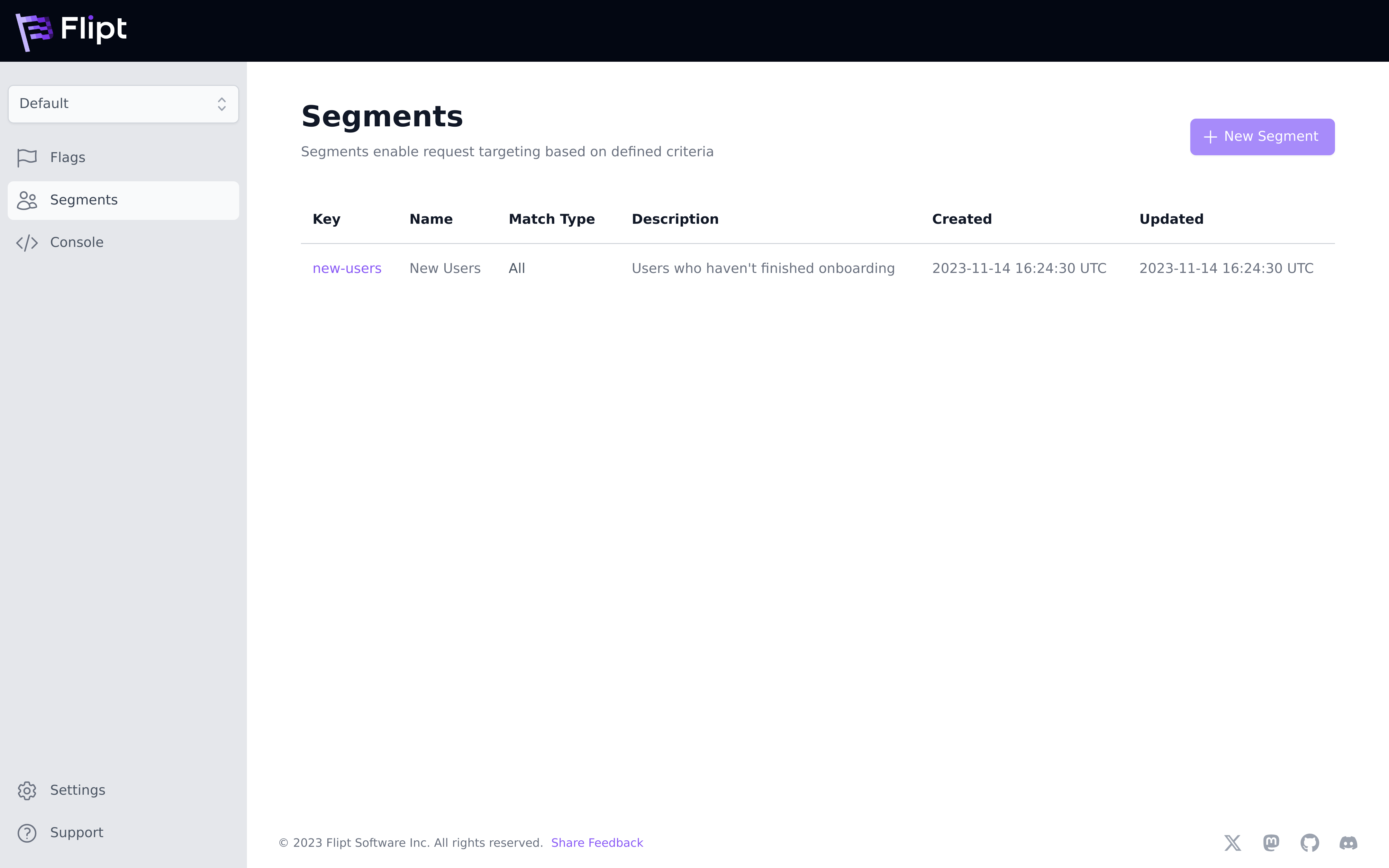

Segments allow you to split your user base or audience up into predefined slices. This is a powerful feature that enables targeting groups to determine if a flag or variant applies to them.

An example segment could be new-users.

​

Match Types

When configuring a segment you can choose a Match Type of either:

• Match All which requires ALL constraints to match for the segment to apply for evaluation.
• Match Any which requires AT LEAST ONE constraint to match for the segment to apply for evaluation.

​

Constraints

Constraints allow you to determine which segment a given entity is a part of.

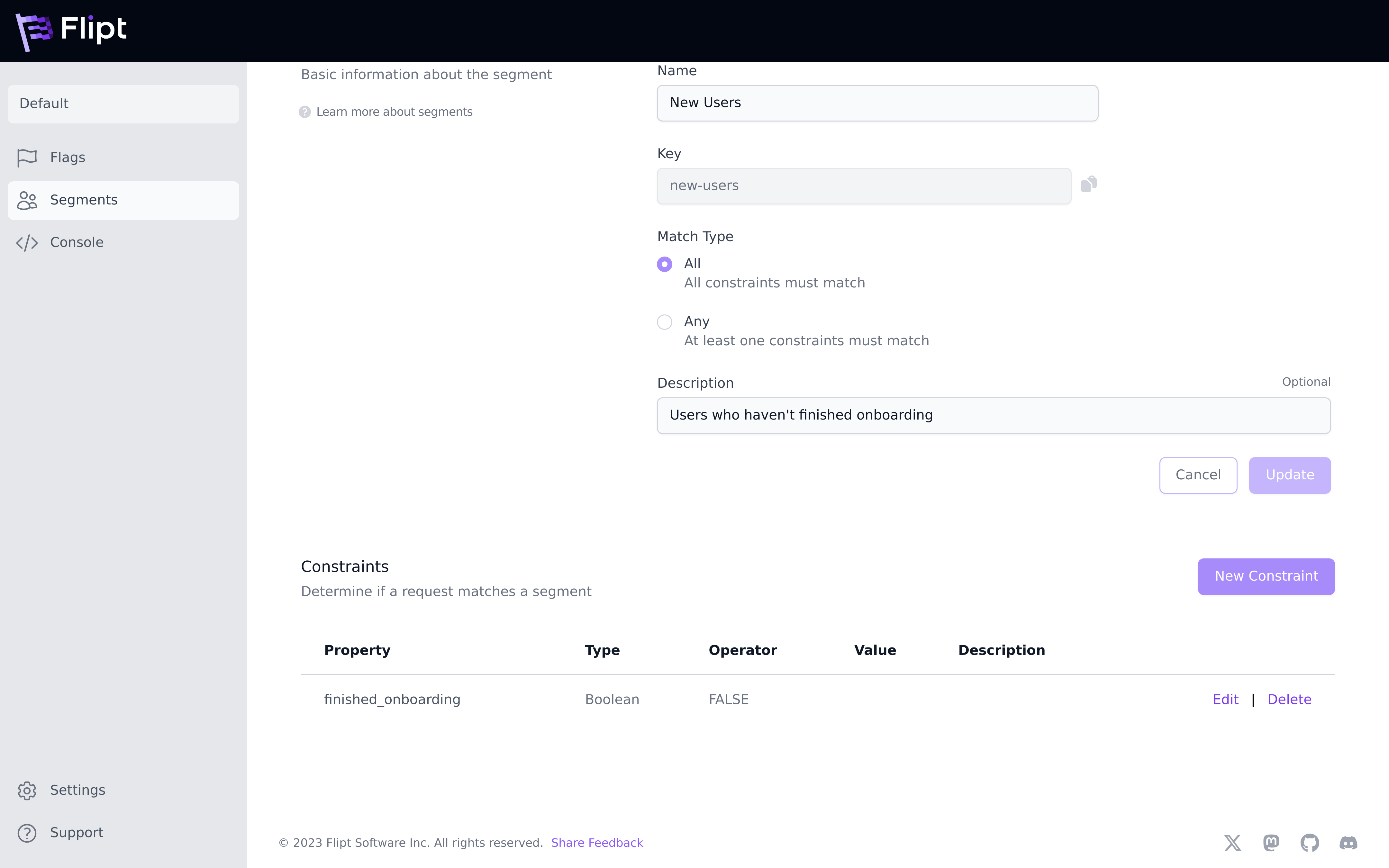

For example, for a user to fall into the above new-users segment, you may want to check their finished_onboarding property.

All constraints have a property, type, operator and optionally a value.

​

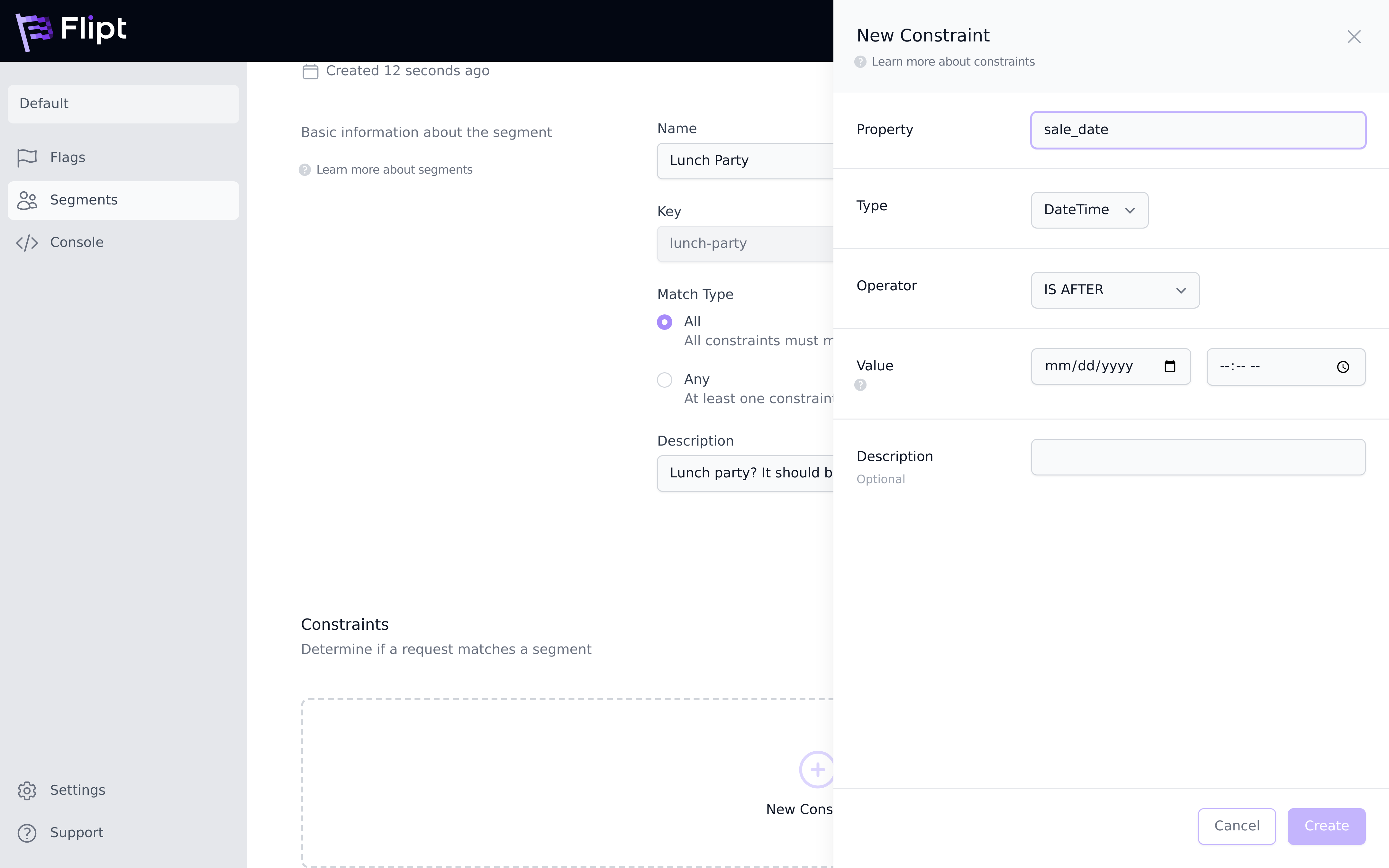

Constraint Types

Currently 5 constraint types are available:

• String which allows you to check a string property of an entity
• Number which allows you to check a number property of an entity (integer or float)
• Boolean which allows you to check a boolean property of an entity such as true or false
• DateTime which allows you to check a date or datetime property of an entity such as 2020-01-01 or 2020-01-01T00:00:00Z (RFC3339)
• Entity which allows you to check the entityId that was sent in the body of the Variant or Boolean request

​

Rules

Rules allow you to tie your flags, variants and segments together by specifying which segments are targeted by which variants.

Rules can be as simple as IF IN segment THEN RETURN variant_a or they can be richer by using distribution logic to roll out features on a percentage basis.

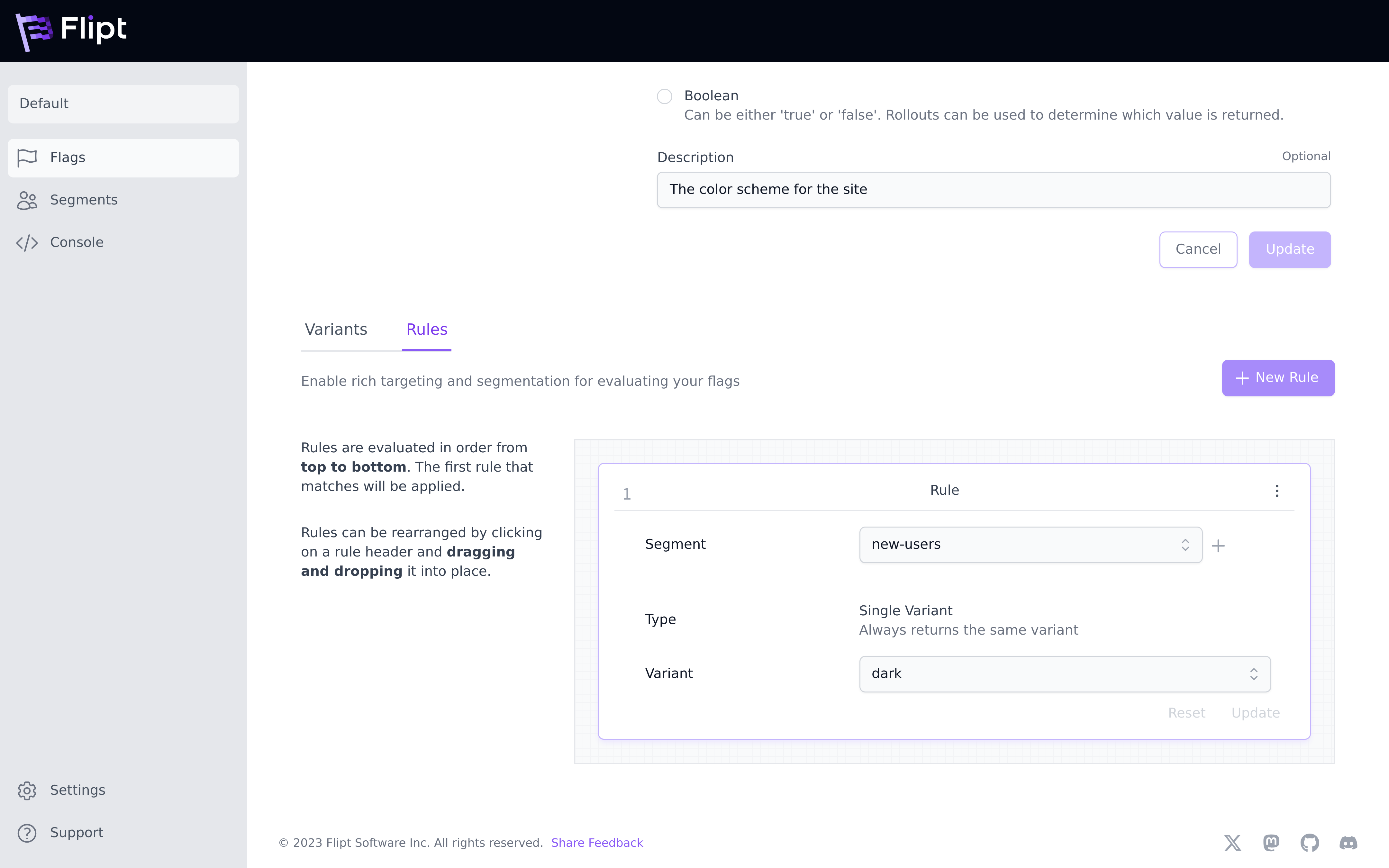

Continuing our previous example, we may want to return the flag variant dark for all entities in the new-users segment. This would be configured like so:

Rules are evaluated in order per their rank from 1-N. The first rule that matches wins. Once created, rules can be re-ordered to change how they’re evaluated.

​

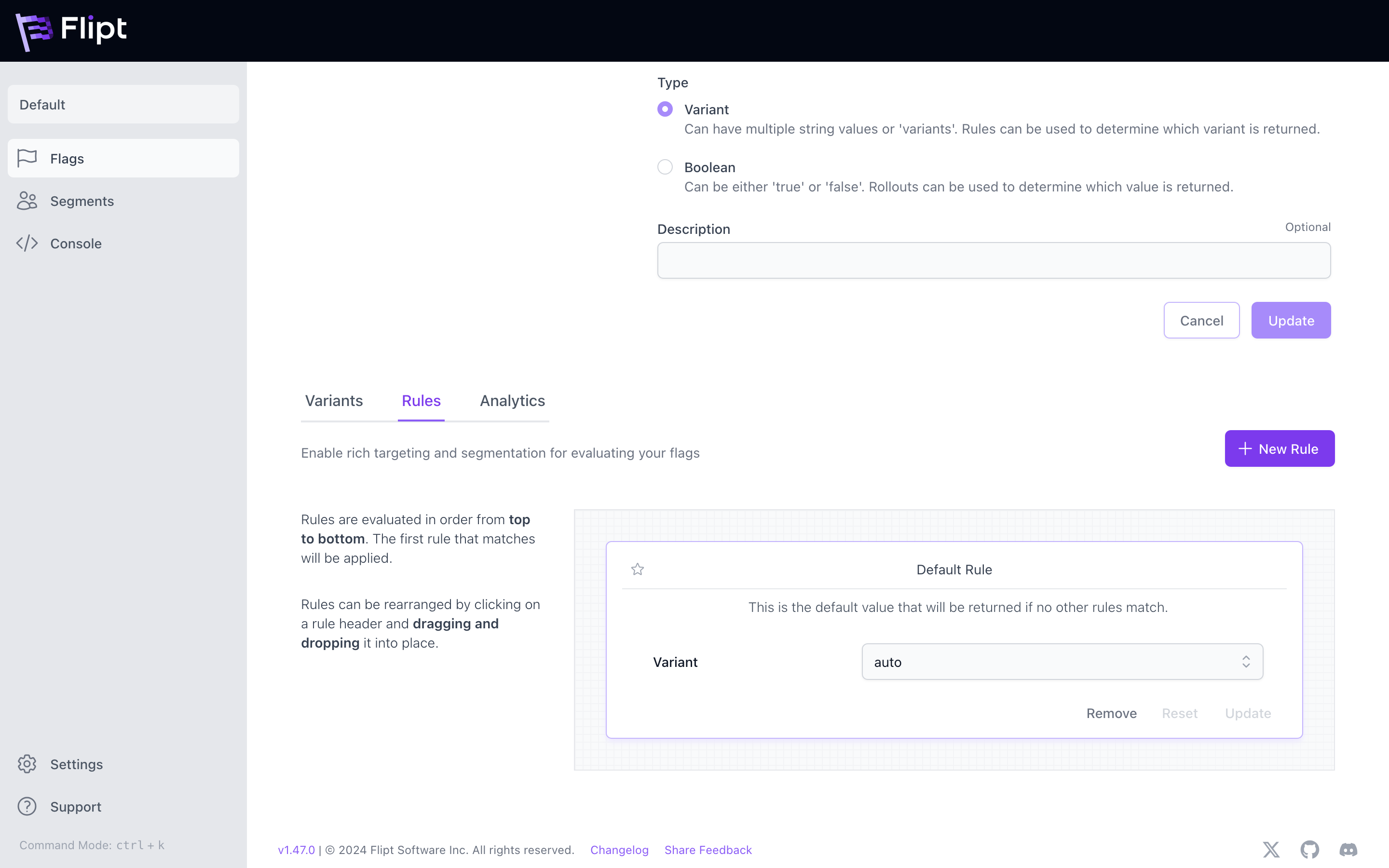

Default Rule

If no rules match for a given flag, the default rule value is returned. This value is optional and can be set to any variant that exists for the flag.

​

Distributions

Distributions allow you to return different variants of your flag to different percentages of your user base based on your rules.

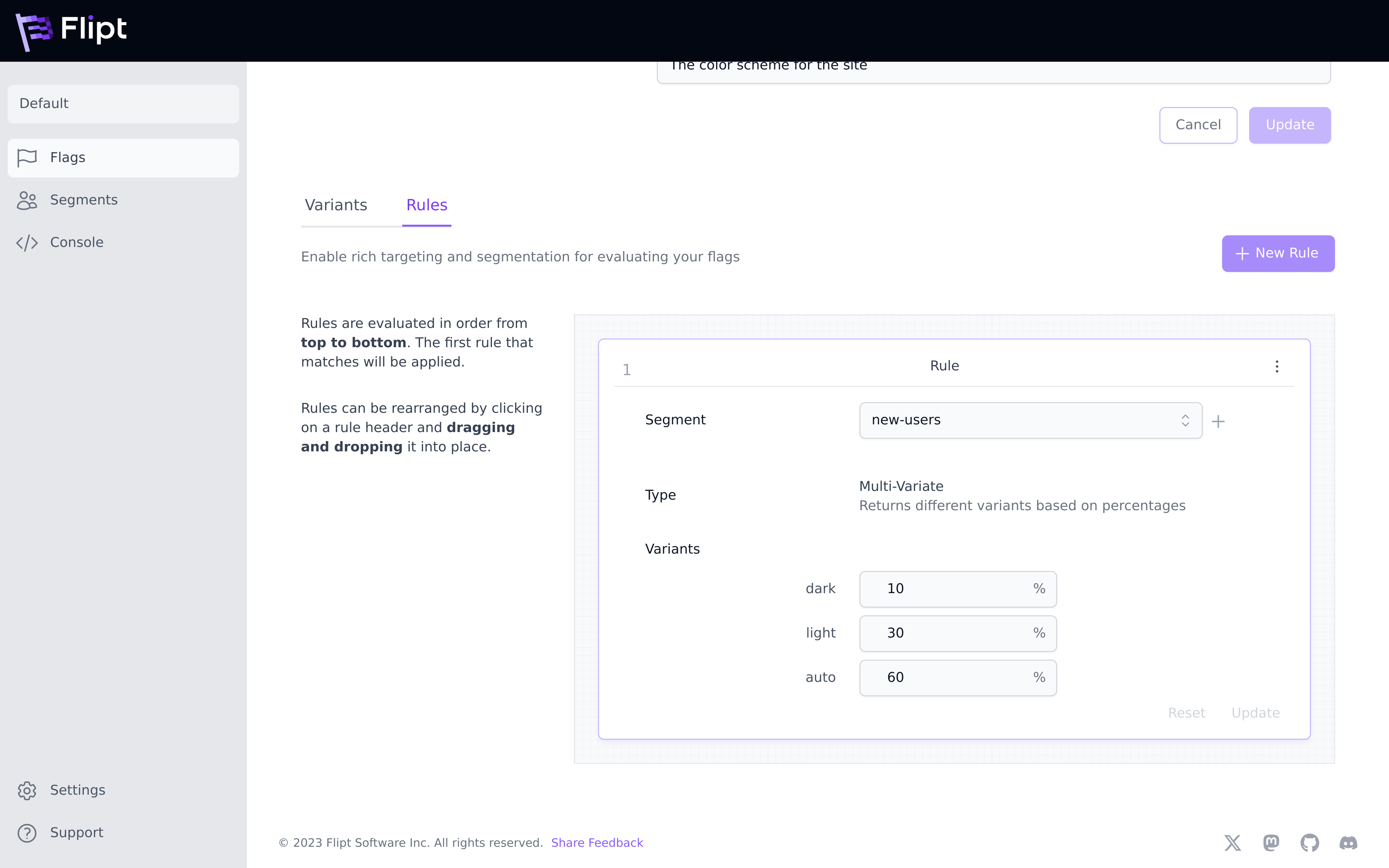

Let’s say that instead of always showing the dark variant to your new-users segment, you want to show dark to 10% of new-users, light to 30%, and auto to the remaining 60%. You would accomplish this using rules with distributions:

The ability to manage distributions, as illustrated in the image above, is an extremely powerful feature of Flipt that can help you seamlessly deploy new features of your applications to your users while also limiting the reach of potential bugs.

​

Rollouts

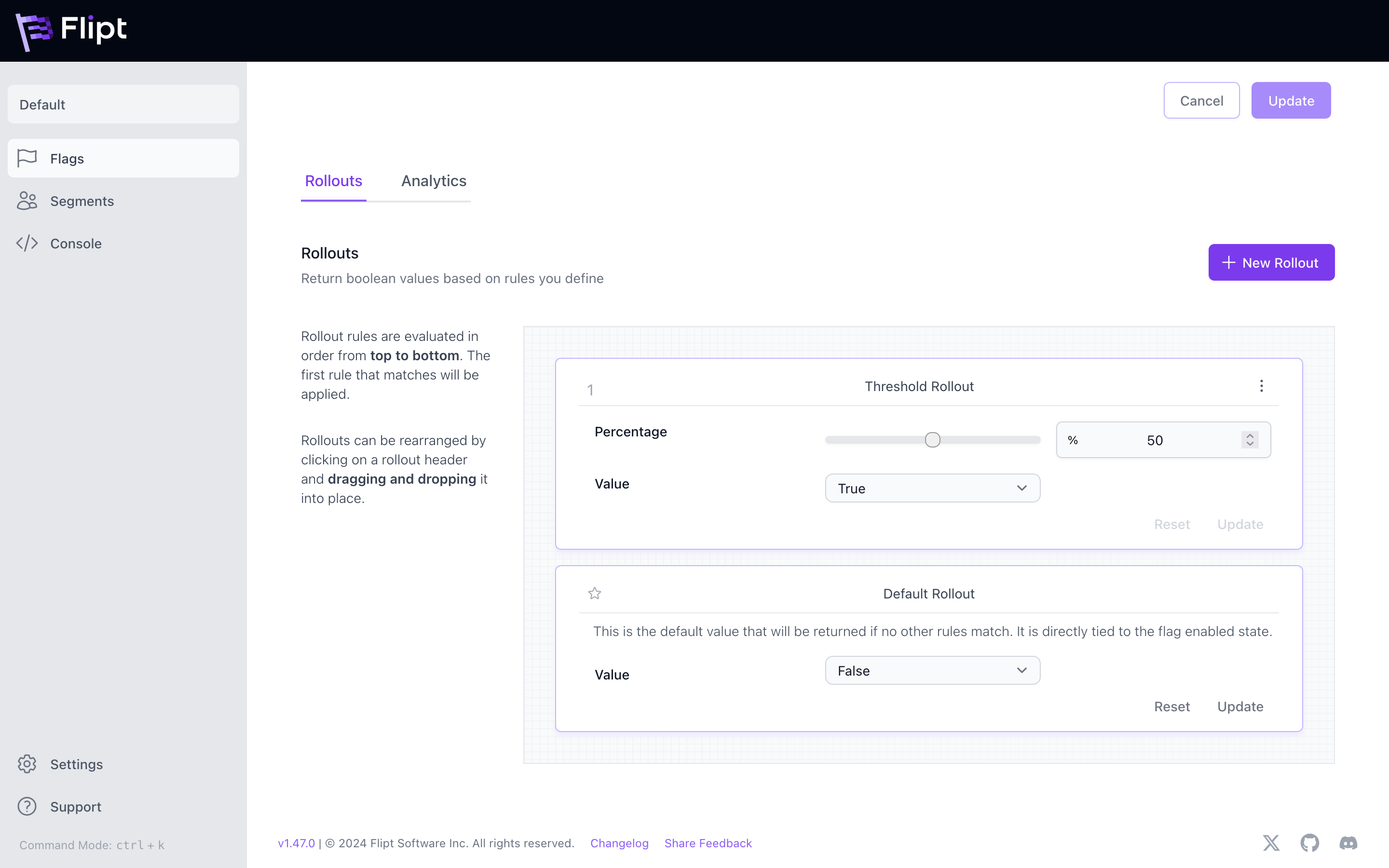

Rollouts allow you to potentially change the result of a boolean flag value at request time.

Rollouts are a sequence of conditions which when one is matched for a request context, overrides the default rollout property.

Current rollout types include:

• Threshold which allows you to return true or false for a given percentage of entities.
• Segments Match which allows you to return true or false if an entity matches a given segment.

Rollouts work similar to Rules in that they’re evaluated in order per their rank from 1-N. The first rollout that matches wins. Once created, rollouts can be re-ordered to change how they’re evaluated.

​

Default Rollout

If no rollouts match for a given flag, the default rollout value is returned. This value is the same as the ‘enabled’ value for the flag for backward compatibility reasons.

​

Evaluation

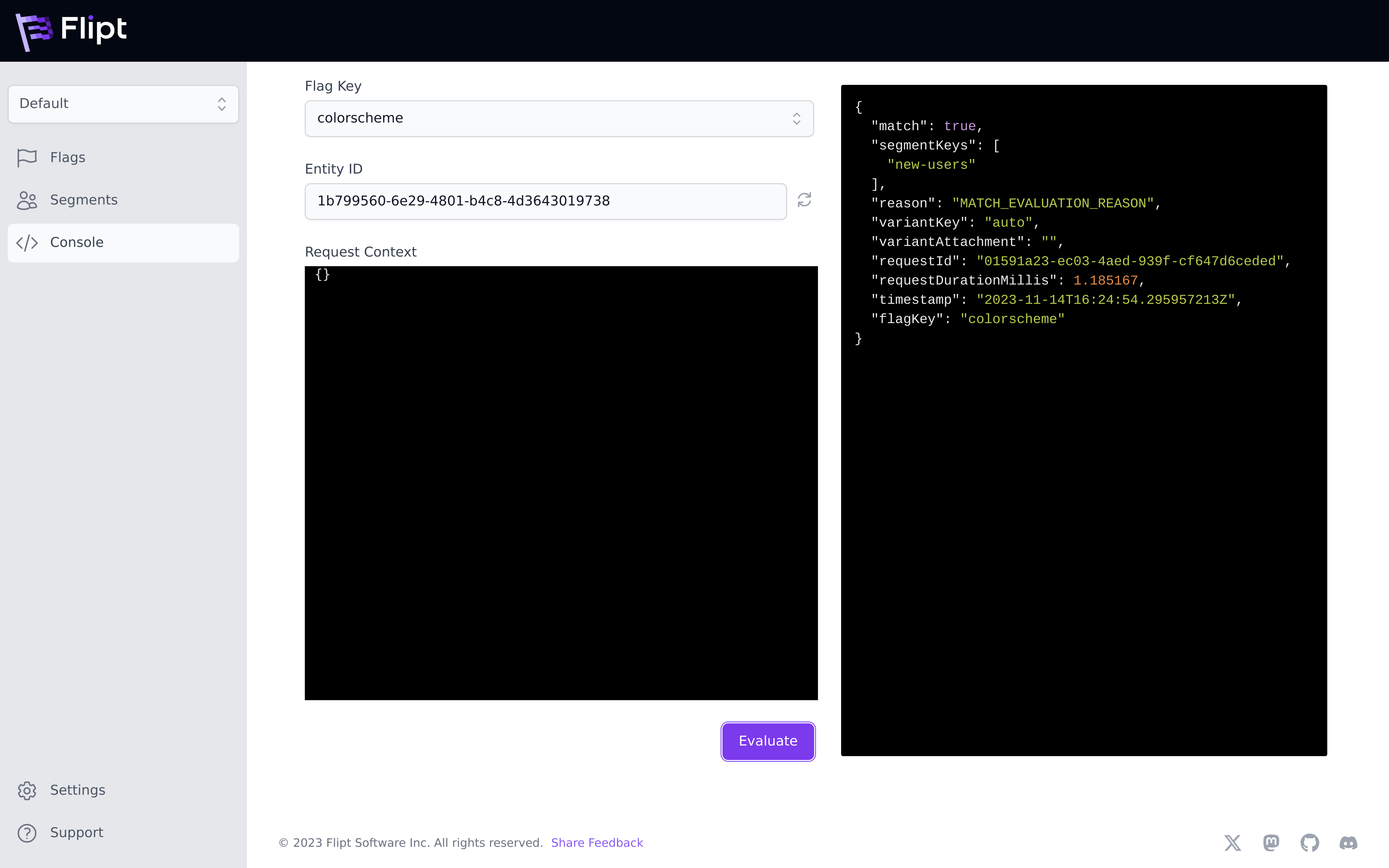

Evaluation is the process of sending requests to the Flipt server to process and determine if that request matches any of your segments and if so which variant or boolean value to return depending on flag type.

In the above example involving colors, evaluation is where you send information about your current user to determine if they’re a new-user, and which color (dark, auto, or light) that they should see for their main color scheme.

​

Entities

Evaluation works by uniquely identifying each thing that you want to compare against your segments and flags. We call this an entity in the Flipt ecosystem. More often than not this will be a user, but we didn’t want to make any assumptions about how your application works, which is why entity was chosen.

For Flipt to successfully determine which bucket your entities fall into, it must have a way to uniquely identify them. This is the entityId and it’s a simple string. It’s up to you what that entityId is.

It could be a:

• email address
• userID
• IP address
• physical address
• etc

Anything that’s unique enough for your application and its requirements.

​

Context

The final piece of the puzzle is context. Context allows Flipt to determine which segment your entity falls into by comparing it to all the possible constraints that you defined.

Examples of context include:

- isAdmin
- favoriteColor
- country
- freeUser

Think of these as pieces of information that are usually not unique, but that can be used to split your entities into your segments.

You can include as much or as little context for each entity as you want, however, the more context that you provide, the more likely it’s that an entity will match one of your segments.

In Flipt, context is a simple map of key-value pairs where the key is the property to match against all constraints, and the value is what’s compared.

​

Bucketing

Bucketing is the process of determining which variant to return for a given evaluation request.

Flipt uses a hashing algorithm to determine which variant to return for a given flagKey, entityID and context. This is what allows Flipt to return the same variant every time (also sometimes referred to as stickiness).

Let’s look at how it works:

1. Flipt takes the flagKey and entityID and concatenates them together to form a string that looks like flagKey:entityID. This is called the key.
2. Flipt then takes this new key and uses a hashing algorithm (CRC-32 ChecksumIEEE) to create a 32-bit integer called the hash.
3. Flipt then creates a set of buckets from 0‐999 (1000 total buckets), mapping them with a sorted set of the distributions for the flag.
4. Finally, Flipt takes the hash and uses the modulo operator to determine which bucket the hashed value falls into. The distribution that maps to that bucket is then returned.

Consider an example:

Imagine that you have a flag with two distributions A and B.

If distribution A has a 30% ‘rollout’, then it would ‘take up’ buckets 0‐299 (out of the 1000 buckets). Distribution B would take up the remaining buckets 300‐999.

The flagKey/entityID hashed value is a 32bit integer on which Flipt performs a modulo operation (% 1000) so that it ‘s guaranteed to return a number between 0‐999.

The result of the modulo operation is then used to determine which distribution to return via the bucket mapping. If the result is between 0‐299, then distribution A is returned, otherwise distribution B is returned.
